Product Summary

The TX1475NLT is an Octal SMT Transformer Module.

Parametrics

TX1475NLT absolute maximum ratings: (1)Turns Ratio (Pri:Sec ±2%): 1:2 & 1:1; (2)OCL Secondary @ 25℃ (mH MIN): 1.2; (3)CW/W (pF MAX): 30; (4)LL (μH MAX): .60; (5)Isolation Voltage (Vrms MIN): 1500; (6)Package/ Schematic: YB/1; (7)Primary Pins:1-2, 7-8, 9-10, 15-16 & 3-4, 5-6, 11-12, 13-14.

Features

TX1475NLT features: (1)RoHS peak reflow temperature rating 245℃; (2)Industry smallest T1/E1 quad-port transformer module; (3)Crosstalk: -60 dB typically; (4)Operating temperature range: -40℃ to +85℃; (5)UL recognized (some parts pending approval); (6)Isolation voltage: 1500 Vrms.

Diagrams

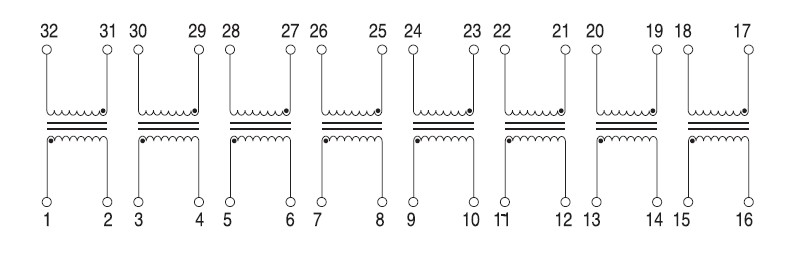

TX1475NLT circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TX1475NLT
TX1475NLT
Pulse
Transformers Audio & Signal SM OCTAL TRANSFORMER
Data Sheet
0-80: $4.77
80-100: $4.28
100-200: $4.28
200-500: $3.82
