Product Summary
The C8051F410 is a fully integrated, low power, mixed-signal system-on-a-chip MCU. With on-chip Power-On Reset, VDD monitor, Watchdog Timer, and clock oscillator, the C8051F410 device is truly standalone system-on-a-chip solutions. The Flash memory can be reprogrammed even in-circuit, providing non-volatile data storage, and also allowing field upgrades of the 8051 firmware. User software has complete control of all peripherals, and may individually shut down any or all peripherals for power savings.
Parametrics
C8051F410 absolute maximum ratings: (1)Ambient temperature under bias: –55 to 125 ℃; (2)Storage Temperature: –65 to 150 ℃; (3)Voltage on VREGIN with respect to GND: –0.3 to 5.5 V; (4)Voltage on VDD with respect to GND: –0.3 to 3.0 V; (5)Voltage on VRTC-BACKUP with respect to GND: –0.3 to 5.5 V; (6)Voltage on XTAL1 with respect to GND: –0.3 to VDD+ 0.3 V; (7)Voltage on XTAL3 with respect to GND: –0.3 to 5.5 V; (8)Voltage on any Port I/O Pin (except Port 0 pins) or RST with respect to GND: –0.3 to VIO + 0.3 V; (9)Voltage on any Port 0 Pin with respect to GND: 0.3 to 5.5 V; (10)Maximum output current sunk by any Port pin: 100 mA; (11)Maximum output current sourced by any Port pin: 100 mA; (12)Maximum Total current through VDD, VIO, VRTC-BACKUP, VREGIN, and GND: 500 mA.
Features
C8051F410 features: (1)Analog Peripherals: 12-Bit ADC, Two 12-Bit Current Mode DACs, Two Comparators; (2)On-Chip Debug: On-chip debug circuitry facilitates full-speed, non-intrusive in-system debug (No emulator required), Provides breakpoints, single stepping, Inspect/modify memory and registers, Complete development kit; (3)Supply Voltage 2.0 to 5.25 V: Built-in LDO regulator: 2.1 or 2.5 V; (4)High Speed 8051 μC Core: Pipelined instruction architecture; executes 70% of instructions in 1 or 2 system clocks, Up to 50 MIPS throughput with 50 MHz system clock, Expanded interrupt handler.

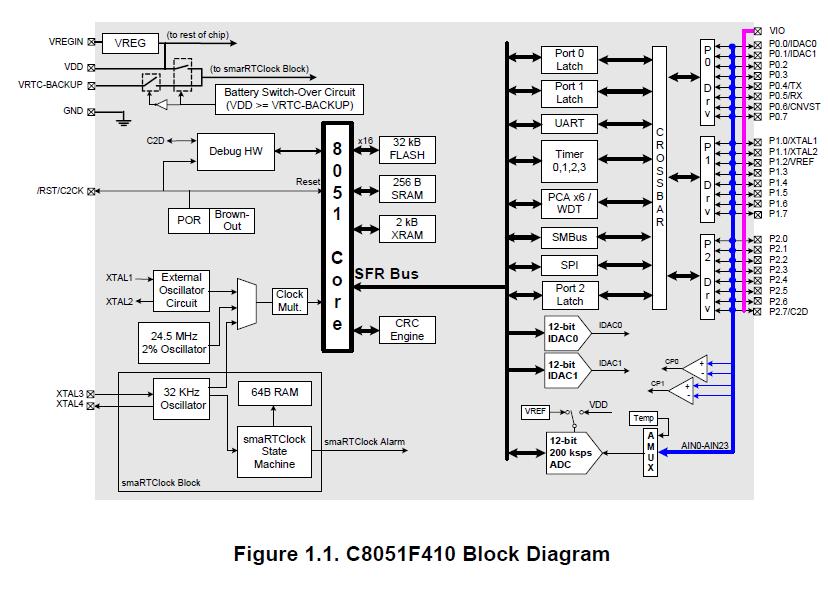

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
C8051F410 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
C8051F410DK |
Silicon Labs |
Development Boards & Kits - 8051 DEV KIT FOR F410 F411 F412 F413 |
Data Sheet |
|
|
|||||||||||||
C8051F410-TB |
Silicon Labs |
Sockets & Adapters PrototypingBoard with C8051F410 |
Data Sheet |
|
|
|||||||||||||
C8051F410-GQ |
Silicon Labs |
8-bit Microcontrollers (MCU) 50 MIPS 32KB 12ADC 32 PIN MCU RTCLOCK |
Data Sheet |
|
|
|||||||||||||
C8051F410-GQR |
Silicon Labs |
8-bit Microcontrollers (MCU) 50 MIPS 32KB 12ADC 32 PIN MCU RTCLOCK |
Data Sheet |
|
|
|||||||||||||
C8051F410-GDI |
Silicon Labs |
8-bit Microcontrollers (MCU) 32 kB Flash MCU |
Data Sheet |
Negotiable |
|
