Product Summary

The HSDL-3603-007 is a low profile infrared transceiver module that provides interface between logic and IR signals for through-air, serial, half-duplex IR data-link. The module is fully compliant to IrDA Date Physical Layer Specifications v1.4 Fct Infrared (FIR) and IEC825-Class I Eye Safe.

Parametrics

Absolute maximum ratings: (1)Storage Temperature: -40 to 100 ℃; (2)Operating Temperature: -5 to 70 ℃; (3)LED Anode Voltage: 0 to 6.5 V; (4)Supply Voltage: 0 to 6.5 V; (5)Input Voltage: TXD, SD/Mode: 0 to 6.5 V; (6)Output Voltage: RXD: 0 to 6.5 V; (7)DC LED Transmit Current: 150 mA; (8)Average Transmit Current: 650 mA.

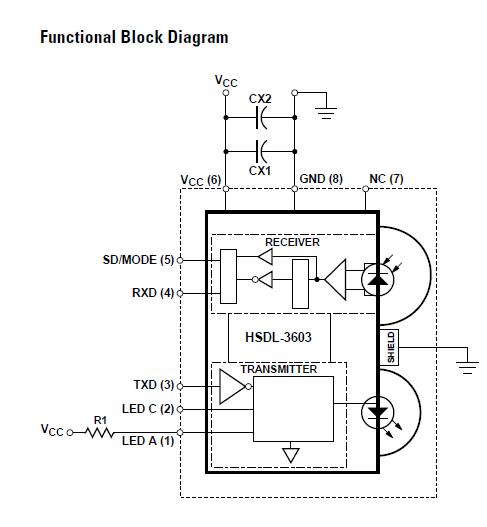

Features

Features: (1)Fully compliant to IrDA 1.4 Fast Infrared (FIR) from 9.6 kbit/s to 4 Mbit/s; (2)Typical link distance > 1.5 m; (3)Guaranteed temperature performance, -25 to 70℃ Critical parameters are guaranteed over temperature and supply voltage; (4)Low power consumption: Low shutdown current (10 nA typical), Complete shutdown of TXD, RXD, and PIN diode; (5)Withstands >100 mVp-p power supply ripple typically.
