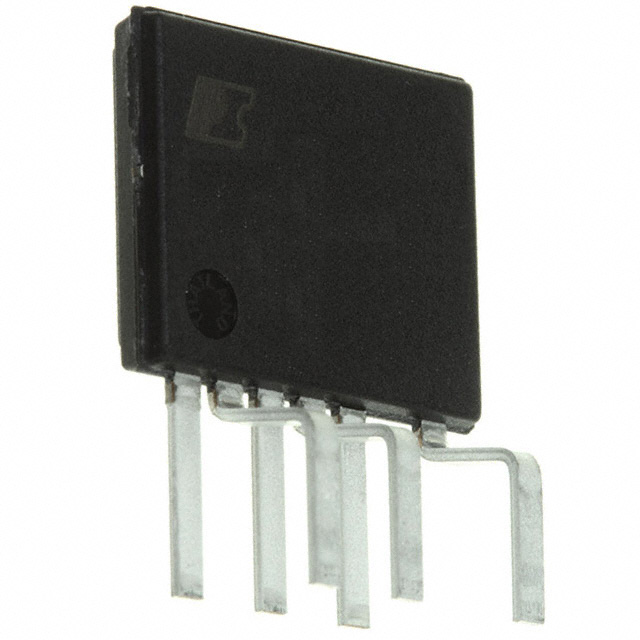

TOP254EN

enhanced ecosmart, integrated off-line switcher, 700 V, 2.08 A, 48 W, ESIP-7PIN

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.73~0.73 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.73~0.73

PartNumber:: TOP254EN

Brand:: Power IC Ltd. - Power | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:TOP254EN
US $0.73 - 0.73
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
QM75DY-H

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TOP254EN is an enhanced ecosmart, integrated off-line switcher with advanced feature set and extended power range.

Parametrics

TOP254EN absolute maximum ratings: (1)DRAIN Peak Voltage: -0.3 V to 700 V; (2)DRAIN Peak Current: TOP254: 2.08 A; (3)CONTROL Voltage: -0.3 V to 9 V; (4)CONTROL Current: 100 mA; (5)VOLTAGE MONITOR Pin Voltage: -0.3 V to 9 V; (6)CURRENT LIMIT Pin Voltage: -0.3 V to 4.5 V; (7)MULTI-FUNCTION Pin Voltage: -0.3 V to 9 V; (8)FREQUENCY Pin Voltage: -0.3 V to 9 V; (9)Storage Temperature: -65 ℃ to 150 ℃; (10)Operating Junction Temperature: -40 ℃ to 150 ℃; (11)Lead Temperature(1): 260 ℃.

Features

TOP254EN features: (1)No heatsink required up to 35 W using P, G and M packages with universal input voltage and up to 48 W at 230 VAC; (2)Output overvoltage protection (OVP)is user programmable for; (3)latching/non-latching shutdown with fast AC reset; (4)Allows both primary and secondary sensing; (5)Line undervoltage (UV)detection prevents turn-off glitches; (6)Line overvoltage (OV)shutdown extends line surge limit; (7)Accurate programmable current limit; (8)Optimized line feed-forward for line ripple rejection; (9)132 kHz frequency (254Y-258Y and all E/L packages)reduces transformer and power supply size; (10)Half frequency option for video applications; (11)Frequency jittering reduces EMI fi lter cost; (12)Heatsink is connected to SOURCE for low EMI; (13)Improved auto-restart delivers <3% of maximum power in short circuit and open loop fault conditions; (14)Accurate hysteretic thermal shutdown function automatically recovers without requiring a reset; (15)Fully integrated soft-start for minimum start-up stress; (16)Extended creepage between DRAIN and all other pins improves fi eld reliability.
