Product Summary
The TLV70028DDCR is a low dropout (LDO) linear regulator. It is low quiescent current device with excellent line and load transient performance. It is designed for power-sensitive applications.
Parametrics
Absolute maximum ratings: (1)Input voltage range, VIN: -3.3 to +6.0 V; (2)Enable voltage range, VEN: -3.3 to +6.0 V; (3)Output voltage range, VOUT: -3.3 to +6.0 V; (4)Maximum output current, IOUT: Internally limited; (5)Output short-circuit duration: Indefinite; (6)Operating junction temperature range, TJ:-55 to +150 ℃ (7)Storage temperature range, TSTG: -55 to +150 ℃
Features
Features: (1)very low dropout; (2)2% accuracy; (3)low IQ; (4)available in fixed-output voltages from 0.7V to 4.8V; (5)high PSRR: 68dB at 1kHz; (6)stable with effective capacitance of 0.1μF; (7)thermal shutdown and overcurrent protection.

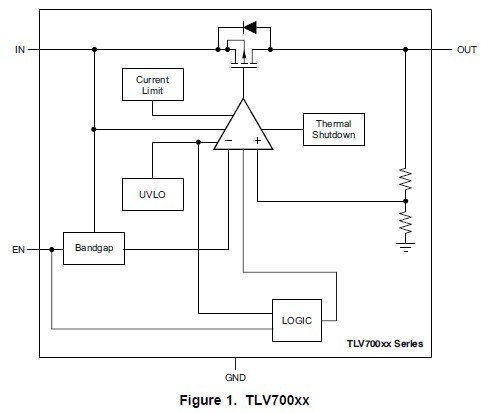

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLV70028DDCR |
Texas Instruments |
Low Dropout (LDO) Regulators 200mA Low IQ LDO Reg for Portables |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
TLV70012DCKR |
Texas Instruments |
Low Dropout (LDO) Regulators 200mA,Lo IQ,LDO Reg |
Data Sheet |
|
|
||||||||||||
|
TLV70012DCKT |
Texas Instruments |
Low Dropout (LDO) Regulators 200mA,Lo IQ,LDO Reg |
Data Sheet |
|
|
||||||||||||
|
TLV70012DDCR |
Texas Instruments |
Low Dropout (LDO) Regulators 200mA,Low IQ,LDO Reg |
Data Sheet |
|
|
||||||||||||
|
TLV70012DDCT |
Texas Instruments |
Low Dropout (LDO) Regulators 200mA,Low IQ,LDO Reg |
Data Sheet |
|
|
||||||||||||
|
TLV70012DSER |
Texas Instruments |
Low Dropout (LDO) Regulators 200mA Low IQ LDO Reg |
Data Sheet |
|
|
||||||||||||
|
TLV70012DSET |
Texas Instruments |
Low Dropout (LDO) Regulators 200mA Low IQ LDO Reg |
Data Sheet |
|
|
||||||||||||
