Product Summary
The LTC3206EUF is a highly integrated multidisplay LED controller. It is available in a 24-lead QFN package. It is suitable for cellular phones, wireless pdas and multidisplay handheld devices.
Parametrics
Absolute maximum ratings: (1)VIN, DVCC, CPO to GND: -0.3V to 6V; (2)SDA, SCL, ENRGB/S: -0.3V to (DVCC + 0.3V); (3)ICPO (Continuous): 400mA; (4)(Pulsed at 10% Duty Cycle): 1A; (5)IMAIN1-4, ISUB1,2, IAUX 1, 2: 100mA; (6)(Pulsed at 10% Duty Cycle): 125mA; (7)IRED,GREEN,BLUE: 100mA; (8)(Pulsed at 10% Duty Cycle): 125mA; (9)IMS, IRGB: 1mA; (10)CPO Short-Circuit Duration: Indefinite; (11)Operating Temperature Range: -40℃ to 85℃; (12)Storage Temperature Range: -65℃ to 125℃.
Features
Features: (1)Step-Up/Direct-Connect Fractional Charge Pump Provides Up to 92% Efficiency; (2)Up to 400mA Continuous Output Current; (3)Independent Current and Dimming Control for 1-6 LED MAIN, 1-4 LED SUB and RGB LED Displays; (4)1% LED Current Matching; (5)Low Noise Constant Frequency Operation; (6)Minimal Component Count; (7)Automatic Soft-Start Limits Inrush Current; (8)6 Exponentially Spaced Dimming States Provides 128:1 Brightness Range for MAIN and SUB Displays; (9)Up to 4096 Color Combinations for RGB Display; (10)ow Operating Current; (11)Tiny, Low Profile 24-Lead QFN Package.

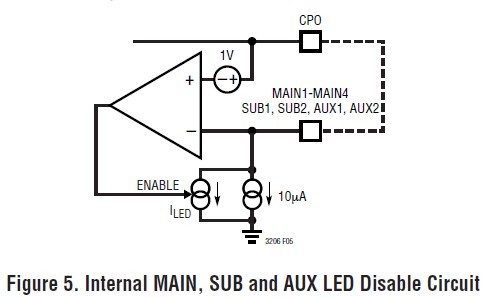

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC3206EUF |
|
IC LED DRVR WT/RGB BCKLGT 24-QFN |
Data Sheet |
|
|
||||||
|
LTC3206EUF#PBF |
|
IC LED DRVR WT/RGB BCKLGT 24-QFN |
Data Sheet |
|
|
||||||
|
LTC3206EUF#TR |
|
IC LED DRVR WT/RGB BCKLGT 24-QFN |
Data Sheet |
|
|
||||||
|
LTC3206EUF#TRPBF |
|
IC LED DRVR WT/RGB BCKLGT 24-QFN |
Data Sheet |
|
|
||||||
