Product Summary
The MM74HC393SJX is a dual 4-Bit binary counter. Its package is M14D.
Parametrics
Absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to +7.0V; (2)DC Input Voltage (VIN): -1.5 to VCC +1.5V; (3)DC Output Voltage (VOUT): -0.5 to VCC +0.5V; (4)Clamp Diode Current (IIK, IOK): ±20 mA; (5)DC Output Current, per pin (IOUT): ±25 mA; (6)DC VCC or GND Current, per pin (ICC): ±50 mA; (7)Storage Temperature Range (TSTG): -65℃ to +150℃; (8)Lead Temperature (TL) (Soldering 10 seconds): 260℃
Features
Features: (1)Typical operating frequency: 50 MHz; (2)Typical propagation delay: 13 ns (Ck to QA); (3)Wide operating supply voltage range; (4)Low input current; (5)Low quiescent supply; (6)Fanout of 10 LS-TTL loads.

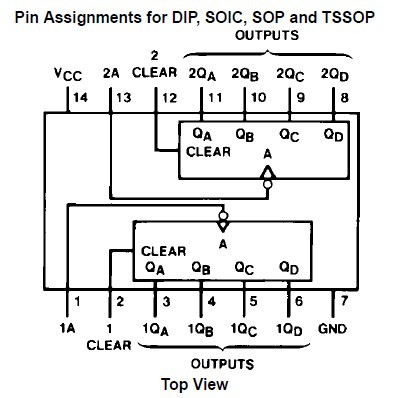

Diagrams
