Product Summary
The TLP116 is a TOSHIBA photocoupler, which is designed for Digital Isolation for A/D,D/A Conversion, High Speed Line Receiver, Microprocessor System Interfaces and Plasma Display Panel.
Parametrics
TLP116 absolute maximum ratings: (1)Forward Current: 20 mA; (2)Forward Current Derating (Ta=85℃): -0.5 mA/℃; (3)Reverse Voltage: 5 V; (4)Output Current: 10 mA; (5)Output Voltage: 6 V; (6)Supply Voltage: 6 V; (7)Output power dissipation: 40 mW; (8)Operating Temperature Range: -40~100 ℃; (9)Storage Temperature Range: -55~125 ℃; (10)Lead Solder Temperature(10s): 260 ℃.
Features
TLP116 features: (1)Inverter Logic (totempole output); (2)Package Type : MFSOP6; (3)Guaranteed Performance Over Temperature : -40~100℃; (4)Power Supply Voltage : 4.5~5.5V; (5)Input Thresholds Current : IFHL=5mA(Max.); (6)Propagation delay Time (tpHL/tpLH) : 60ns(Max.); (7)Switching speed : 20MBd(TYP.) (NRZ); (8)Common mode transient immunity : 10kV/us; (9)Isolation Voltage : 3750Vrms.

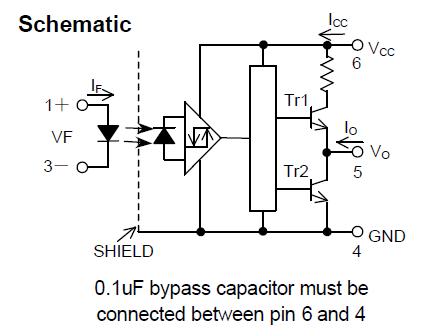

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TLP116 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
TLP116(F) |
Toshiba |
High Speed Optocouplers IC cplr 20Mbps Inverter logic |
Data Sheet |
|
|
|||||||||||||
TLP116(TPR,F) |
Toshiba |
High Speed Optocouplers IC cplr 20Mbps Inverter logic |
Data Sheet |
Negotiable |
|
|||||||||||||
TLP116A(E) |
Toshiba |
High Speed Optocouplers IC Coupler in SO6 |
Data Sheet |
|
|
