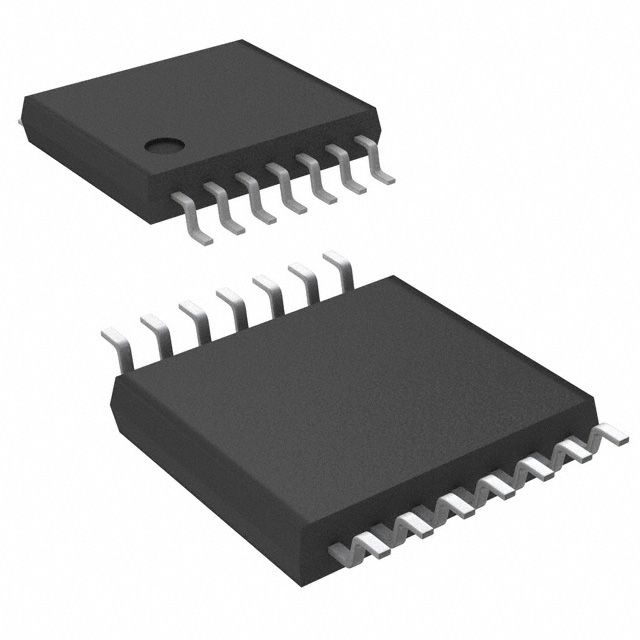

Product Summary
he SN74CBT3125PWR is a quadruple FET bus switch. It features independent line switches. The SN74CBT3125PWR is disabled when the associated output-enable (OE) input is high. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Parametrics
SN74CBT3125PWR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input voltage range, VI: -0.5 V to 7 V; (3)Continuous channel current: 128 mA; (4)Input clamp current, IK (VI/O < 0): -50 mA; (5)Package thermal impedance, θJA: 86℃/W; (6)Storage temperature range, Tstg: -65 to 150℃.
Features
SN74CBT3125PWR features: (1)Standard 125-Type Pinout (D, DB, DGV,and PW Packages); (2)5-Ω Switch Connection Between Two Ports; (3)TTL-Compatible Input Levels.

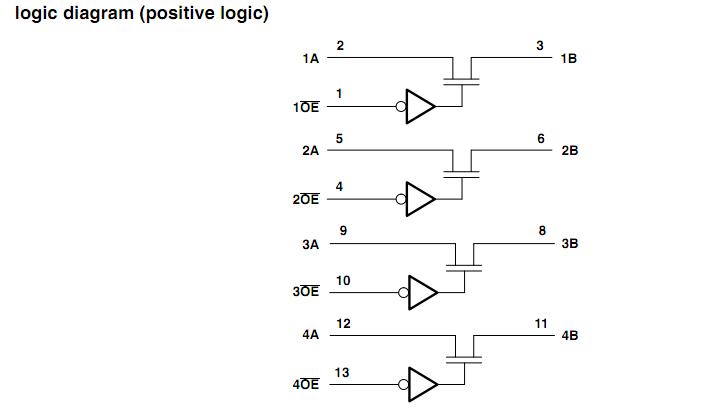

Diagrams
