Product Summary

The 74VCX16374MTDX is a Low Voltage 16-Bit D-Type Flip-Flop with 3.6V Tolerant Inputs and Outputs. It contains sixteen non-inverting D-type flipflops with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. A buffered clock (CP) and output enable (OE) are common to each byte and can be shorted together for full 16-bit operation.

Parametrics

Absolute maximum ratings: (1)Supply Voltage: -0.5V to +4.6V; (2)DC Input Voltage: -0.5V to +4.6V; (3)Output Voltage: Outputs 3-STATED: -0.5V to +4.6V, Outputs Active: -0.5V to VCC +0.5V; (4)DC Input Diode Current (IIK) VI & 0V: -50 mA; (5)DC Output Diode Current: VO<0V: -50 mA, VO>VCC: +50 mA; (6)DC Output Source/Sink Current (IOH/IOL): ±50 mA; (7)DC VCC or GND Current per Supply Pin (ICC or GND): ±100 mA; (8)Storage Temperature Range (TSTG): -65℃ to +150℃.

Features

Features: (1)1.2V to 3.6V VCC supply operation; (2)3.6V tolerant inputs and outputs; (3)tPD: 3.0 ns max for 3.0V to 3.6V VCC; (4)Power-off high impedance inputs and outputs; (5)Supports live insertion and withdrawal (Note 1); (6)Static Drive (IOH/IOL): ±24 mA @ 3.0V VCC; (7)Uses patented noise/EMI reduction circuitry; (8)Latch-up performance exceeds 300 mA.

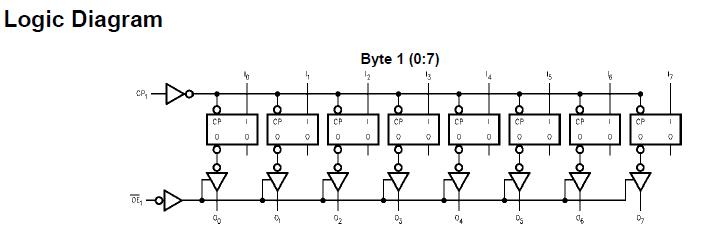

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
74VCX16374MTDX
74VCX16374MTDX

Fairchild Semiconductor

Flip Flops 16-Bit D Flip-Flop

Data Sheet

0-1: $0.83
1-25: $0.64
25-100: $0.59
100-250: $0.51
