Product Summary
The AD9760ARZ is the 10-bit resolution member of the TxDAC series of high performance, low power CMOS digital-to-analog converters (DACs).
Parametrics
Absolute maximum ratings: (1)AVDD: -0.3 to +6.5 V; (2)DVDD: -0.3 to +6.5 V; (3)ACOM: -0.3 to +0.3 V; (4)AVDD: -0.5 to +6.5 V; (5)CLOCK, SLEEP: -0.3 to DVDD + 0.3 V; (6)Digital Inputs DCOM: -0.3 to DVDD + 0.3 V; (7)IOUTA, IOUTB ACOM: 0 to AVDD + 0.3 V; (8)COMP1, COMP2 ACOM: -0.3 to AVDD + 0.3 V; (9)REFIO, FSADJ ACOM: -0.3 to AVDD + 0.3 V; (10)REFLO ACOM: -0.3 +0.3 V; (11)Junction Temperature: +150 ℃; (12)Storage Temperature: -5 to +150 ℃; (13)Lead Temperature: +300 ℃.
Features
Features: (1)Member of Pin-Compatible TxDAC Product Family; (2)125 MSPS Update Rate; (3)10-Bit Resolution; (4)Excellent Spurious Free Dynamic Range Performance; (5)SFDR to Nyquist @ 40 MHz Output: 52 dBc; (6)Differential Current Outputs: 2 mA to 20 mA; (7)Power Dissipation: 175 mW @ 5 V to 45 mW @ 3 V; (8)Power-Down Mode: 25 mW @ 5 V; (9)On-Chip 1.20 V Reference; (10)Single +5 V or +3 V Supply Operation; (11)Packages: 28-Lead SOIC and TSSOP; (12)Edge-Triggered Latches.

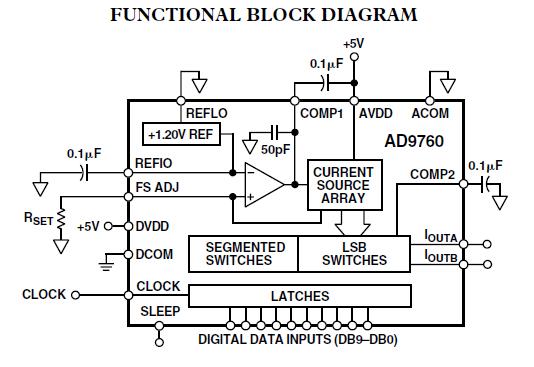

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

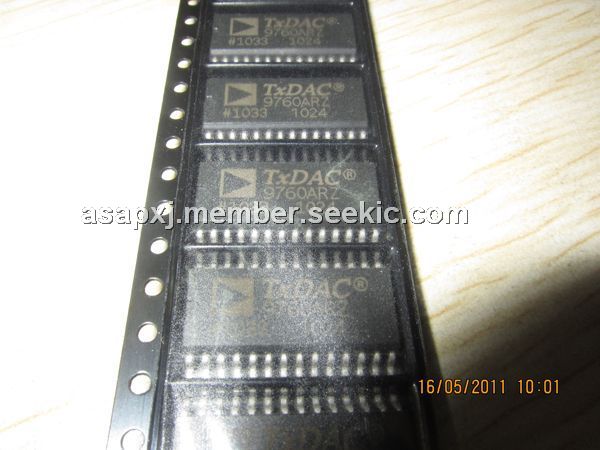

AD9760ARZ |
IC DAC 10BIT 125MSPS 28-SOIC |
Data Sheet |
|
|
||||||||||||||||||
AD9760ARZ50 |
IC DAC 10BIT 50MSPS 28-SOIC |
Data Sheet |
|
|
||||||||||||||||||
AD9760ARZ50RL |
IC DAC 10BIT 125MSPS 28TSSOP |
Data Sheet |
|
|
||||||||||||||||||
AD9760ARZRL |
IC DAC 10BIT 125MSPS 28-SOIC |
Data Sheet |
|
|
