Product Summary

The S9S08AW60E5MFUE is a low-cost, high-performance HCS08 family of 8-bit microcontroller unit (MCU). All MCUs in the family use the enhanced HCS08 core and are available with a variety of modules, memory sizes, memory types, and package types.

Parametrics

S9S08AW60E5MFUE absolute maximum ratings: (1)Supply voltage VDD: -0.3 to + 5.8 V; (2)Input voltage VIn: - 0.3 to VDD + 0.3 V; (3)Instantaneous maximum current Single pin limit (applies to all port pins)ID: ± 25 mA; (4)Maximum current into VDD IDD: 120 mA; (5)Storage temperature Tstg: -55 to +150 ℃; (6)Maximum junction temperature TJ: 150 ℃.

Features

S9S08AW60E5MFUE features: (1)40-MHz HCS08 CPU (central processor unit); (2)20-MHz internal bus frequency; (3)HC08 instruction set with added BGND instruction; (4)Single-wire background debug mode interface; (5)Breakpoint capability to allow single breakpoint setting during in-circuit debugging (plus two more breakpoints in on-chip debug module); (6)On-chip real-time in-circuit emulation (ICE)with two comparators (plus one in BDM), nine trigger modes, and on-chip bus capture buffer. Typically shows approximately 50 instructions before or after the trigger point; (7)Support for up to 32 interrupt/reset sources; (8)Optional computer operating properly (COP)reset; (9)Low-voltage detection with reset or interrupt; (10)Illegal opcode detection with reset.

Diagrams

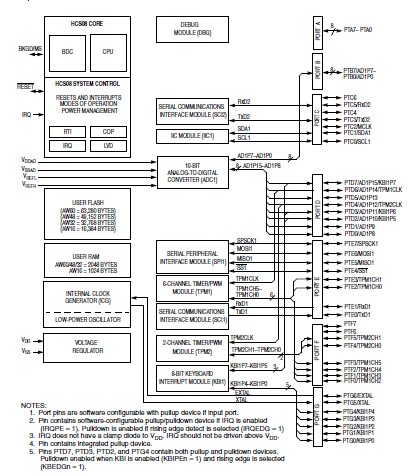

S9S08AW60E5MFUE pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
S9S08AW60E5MFUE
S9S08AW60E5MFUE
Freescale Semiconductor
8-bit Microcontrollers (MCU) AUTO MONET 9S08AW60
Data Sheet
0-1: $3.85
1-10: $3.63
10-25: $3.43
25-100: $2.14
