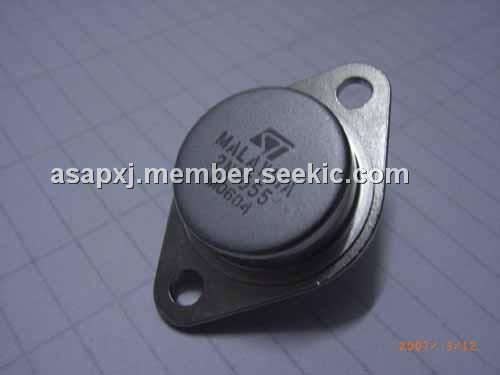

The 2N3055 is a silicon Epitaxial-Base Planar NPN transistor mounted in Jedec TO-3 metal case. 2N3055 is intended for power switching circuits, series and shunt regulators, output stages and high fidelity amplifiers.
Parametrics
2N3055 absolute maximum ratings: (1)VCBO, Collector-Base Voltage (IE = 0): 100 V; (2)VCER, Collector-Emitter Voltage (RBE ￡ 100W): 70 V; (3)VCEO, Collector-Emitter Voltage (IB = 0): 60 V; (4)VEBO, Emitter-Base Voltage (IC = 0): 7 V; (5)IC, Collector Current: 15 A; (6)IB, Base Current: 7 A; (7)Ptot, Total Dissipation at Tc≤25℃: 115 W; (8)Tstg, Storage Temperature: -65 to 200℃; (9)Tj, Max. Operating Junction Temperature: 200℃.
Features
2N3055 features: (1)STMicroelectronics preferred salestypes; (2)complementary npn-pnp devices.
