Product Summary
The RCJ450N20 TL is a 10V Drive Nch MOSFET. It is used for switching.
Parametrics
RCJ450N20 TL absolute maximum ratings: (1)Drain-source voltage VDSS: 200 V; (2)Gate-source voltage VGSS: ±30 V; (3)Drain current Continuous ID: ±45 A, Pulsed IDP: ±180 A; (4)Source current(Body Diode) Continuous IS: 45 A, Pulsed ISP: 180 A; (5)Avalanche current IAS: 22.5 A; (6)Avalanche energy EAS: 160 mJ; (7)Power dissipation PD: 40 W; (8)Channel temperature Tch: 150 ℃; (9)Range of storage temperature Tstg: -55 to 150 ℃.
Features
RCJ450N20 TL features: (1)Low on-resistance; (2)High-speed switching; (3)Wide range of SOA; (4)Drive circuits can be simple; (5)Parallel use is easy.
Diagrams
 |

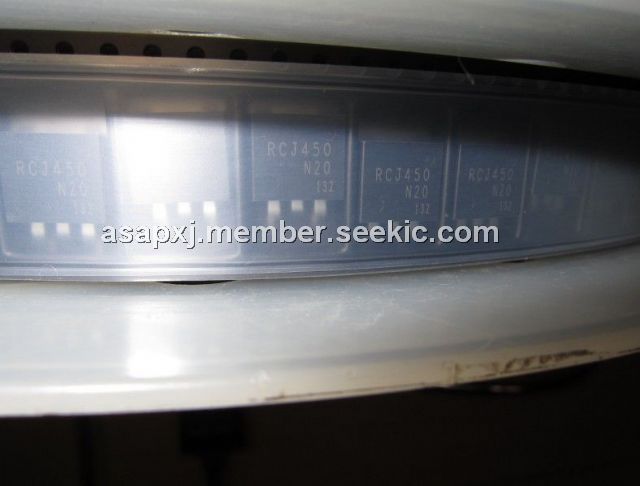

 RCJ450N20TL |
|
MOSFET N-CH 200V 45A LPTS |
Data Sheet |
|
|
||||||||||||||
