Product Summary
The UCC384DPTR-ADJ is a pass regulator. It is tailored for low-dropout applications where low-quiescent power is important.
Parametrics
Absolute maximum ratings: (1)Input voltage range, VIN: -16 V; (2)Shutdown voltage range, SD/CT: -5V to 6 V; (3)Operating virtual junction temperature range, TJ: -55℃ to 150℃; (4)Storage temperature range Tstg: -65℃ to 150℃; (5)Lead temperature (Soldering, 10 seconds): 300℃.
Features
Features: (1)Precision Negative Series Pass Voltage Regulation; (2)0.2 V Dropout at 0.5 A; (3)Wide Input Voltage Range; (4)Low Quiescent Current Irrespective of Load; (5)Simple Logic Shutdown Interfacing; (6) 2.5% Duty Cycle Short Circuit Protection.

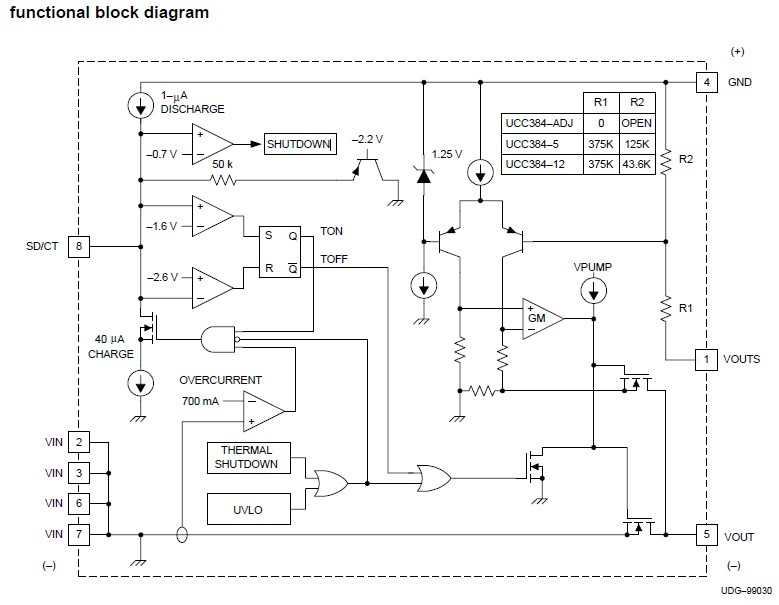

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 UCC384DPTR-ADJ |
Texas Instruments |
Low Dropout (LDO) Regulators 0.5A Negative Linear |
Data Sheet |
|
|
||||||||||
|
UCC384DPTR-ADJG4 |
Texas Instruments |
Low Dropout (LDO) Regulators 0.5A Negative Linear |
Data Sheet |
|
|
||||||||||
