Product Summary

The SN74ALVC162334DGVR is a 16-bit universal bus driver. It is is designed for 1.65-V to 3.6-V VCC operation.

Parametrics

Absolute maximum ratings: (1)VCC, Supply voltage range: -0.5 to 4.6 V; (2)VI, Input voltage range: -0.5 to 4.6 V; (3)VO, Output voltage range: -0.5 VCC to + 0.5 V; (4)IIK, Input clamp current VI < 0: -50 mA max; (5)IOK, Output clamp current VO < 0: -50 mA max; (6)IO, Continuous output current: -50 mA max; (7)Continuous current through each VCC or GND: -100 mA max; (8)Tstg, Storage temperature range -65 to 150℃.

Features

Features: (1)Member of the Texas Instruments Widebus Family; (2)Ideal for Use in PC100 Register DIMM; (3)Operates From 1.65 V to 3.6 V; (4)Max tpd of 3.8 ns at 3.3 V; (5)-12-mA Output Drive at 3.3 V; (6)Output Ports Have Equivalent 26-W Series Resistors, So No External Resistors Are Required; (7)Designed to Comply With JEDEC 168-Pin and 200-Pin SDRAM Buffered DIMM Specification; (8)Latch-Up Performance Exceeds 250 mA Per JESD 17.

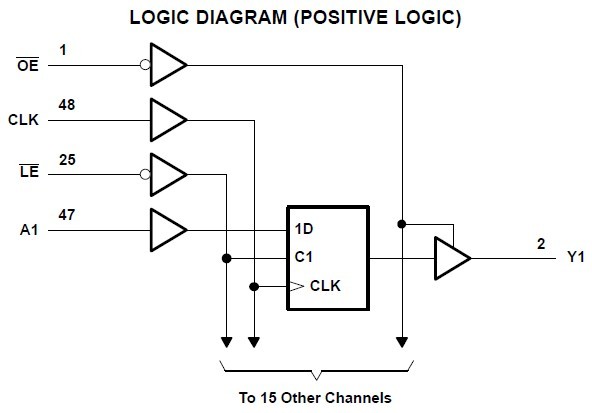

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74ALVC162334DGVR
SN74ALVC162334DGVR

Texas Instruments

Universal Bus Functions 16bit Univ Bus

Data Sheet

0-1480: $1.34
1480-2000: $1.29
2000-5000: $1.24
