Product Summary

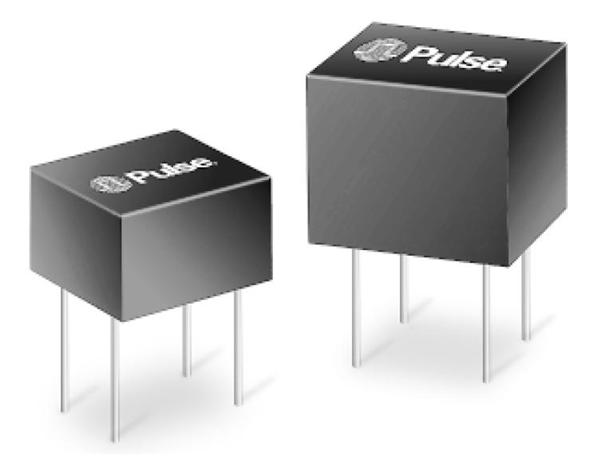

The PE-64934NL is a Single Through Hole Transformer.

Parametrics

PE-64934NL absolute maximum ratings: (1)Turns Ratio (Pri:Sec ±5%): 1:1w; (2)OCL @ 25℃ (mH MIN): 1.20; (3)CW/W (pF MAX): 25; (4)LL (μH MAX): 0.50; (5)DCR Pri (Ω MAX): 0.70; (6)DCR Sec (Ω MAX): 0.70; (7)Package/ Schematic: HC/1; (8)Primary Pins: 1-2.

Features

PE-64934NL features: (1)RoHS-6 peak reflow temperature rating: 245℃; (2)Extended and standard temperature range; (3)Dual and single through hole models available; (4)Models matched to leading IC transceivers; (5)UL recognized; (6)Isolation Voltage: 1500 Vrms MIN.

Diagrams

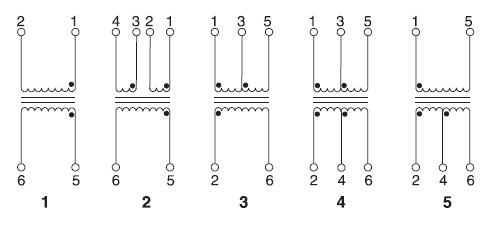

PE-64934NL circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PE-64934NL
PE-64934NL
Pulse
Transformers Audio & Signal XFMR
Data Sheet
0-1: $2.65
1-10: $2.20
10-100: $1.72
100-500: $1.27
