Product Summary

The 2N2907 is a PNP General Purpose Amplifier. It is designed for use as general purpose amplifiers and switches requiring collector currents to 500 mA.

Parametrics

2N2907 absolute maximum ratings: (1)VCEO, Collector-Emitter Voltage: 40 V; (2)VCBO, Collector-Base Voltage: 60 V; (3)VEBO, Emitter-Base Voltage: 5.0 V; (4)IC, Collector Current - Continuous: 800 mA; (5)TJ, Tstg, Operating and Storage Junction Temperature Range: -55 to +150℃.

Features

2N2907 features: (1)PD, Total Device Dissipation:625mW; Derate above 25℃: 5.0mW/℃; (2)RqJC, Thermal Resistance, Junction to Case: 83.3℃/W; (3)RqJA, Thermal Resistance, Junction to Ambient: 200℃/W.

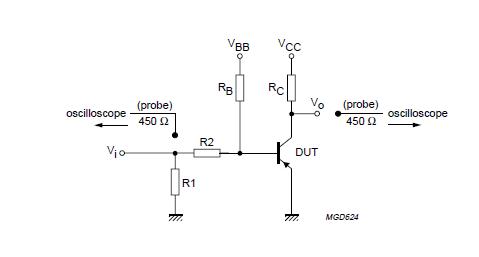

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
2N2907
2N2907
Central Semiconductor
Transistors Bipolar (BJT) PNP Silicon
Data Sheet
0-2000: $0.56
2000-6000: $0.52
6000-10000: $0.46
2N2907A-BP
2N2907A-BP
Micro Commercial Components (MCC)
Transistors Bipolar (BJT) PNP Swt Trans 400mW, 60V, 600mA
Data Sheet
0-16000: $0.14
2N2907AUA
2N2907AUA
Optek
Transistors Bipolar (BJT) PNP G.P. Transistor 4 Pin
Data Sheet
0-60: $8.82
60-100: $8.47
100-250: $8.14
250-500: $7.84
2N2907AUB
2N2907AUB
Optek
Transistors Bipolar (BJT) PNP G.P. Transistor 3 Pin
Data Sheet
0-1: $7.40
1-100: $7.10
100-250: $6.83
250-500: $6.58
2N2907-B
2N2907-B
Micro Commercial Components (MCC)
Transistors Bipolar (BJT) 600mA 60v
Data Sheet
Negotiable
2N2907-BP
2N2907-BP
Micro Commercial Components (MCC)
Transistors Bipolar (BJT) 600mA 60v
Data Sheet
Negotiable
2N2907AQLCC20
2N2907AQLCC20
Other

Data Sheet
Negotiable
2N2907AL
2N2907AL
Other

Data Sheet
Negotiable
