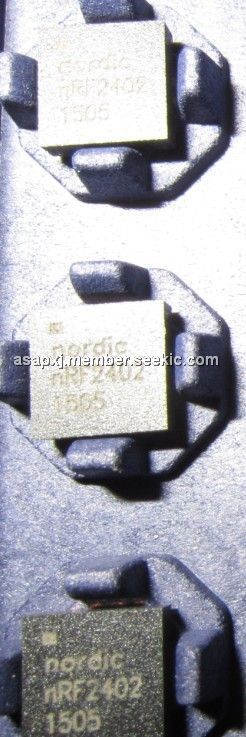

Single chip 2.4 GHz Transmitter, NRF2402, QFN, 35mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.30~1.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.30~1.40

PartNumber:: NRF2402

Brand:: Novanic Technology - Novanic | Pack: QFN | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-21

From Other Seller

Part Number:NRF2402
US $1.30 - 1.40
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

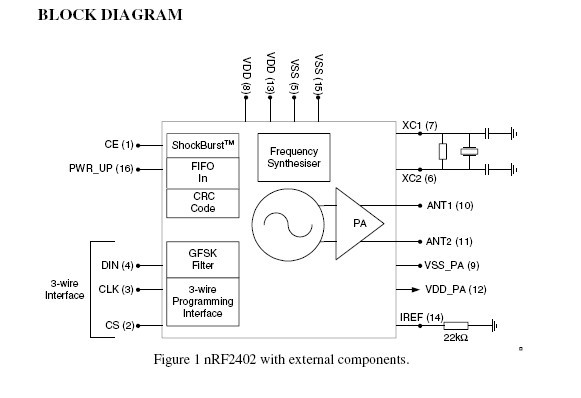

The NRF2402 is a single-chip radio transmitter for the world wide 2.4 - 2.5 GHz ISM band. The transmitter of the NRF2402 consists of a fully integrated frequency synthesizer, a power amplifier, a crystal oscillator and a modulator. Output power and frequency channel is easily programmable by use of the 3-wire interface. Current consumption is very low, only 10 mA at an output power of -5dBm. Built in Shock Burst and Power Down modes make power saving easily realizable. The applications fo the NRF2402 include: Wireless mouse, keyboard, joystick, Keyless entry, Wireless data communication, Alarm and security systems, Home Automation, Remote control, Surveillance, Automotive, Telemetry, Intelligent sports equipment, Industrial sensors, Toys.

Parametrics

NRF2402 absolute maximum ratings: (1)VDD: -0.3V to +3.6V; (2)VSS: 0V; (3)Input voltage: -0.3V to VDD+0.3V; (4)Output voltage: -0.3V to VDD+0.3V; (5)Total power dissipation: 35mW, TA=85℃; (6)Operating Temperature: - 40℃ to + 85℃; (7)Storage Temperature: - 40℃ to + 125℃.

Features

NRF2402 features: (1)True single chip GFSK transmitter in a small 16-pin package (QFN16 4x4); (2)Adjustable output power up to 0dBm; (3)Data rate 0 to 1Mbps; (4)Low Bill of Material; (5)Multi Channel operation; (6)128 channels; (7)Support frequency hopping; (8)Channel switching time ＜200μs; (9)Power supply range: 1.9 to 3.6 V; (10) CRC computation; (11) Shock Burst mode for ultra-low power operation; (12) Low supply current, typical 10mA peak @ -5dBm output power; (13)100% RF tested; (14) World wide use.
