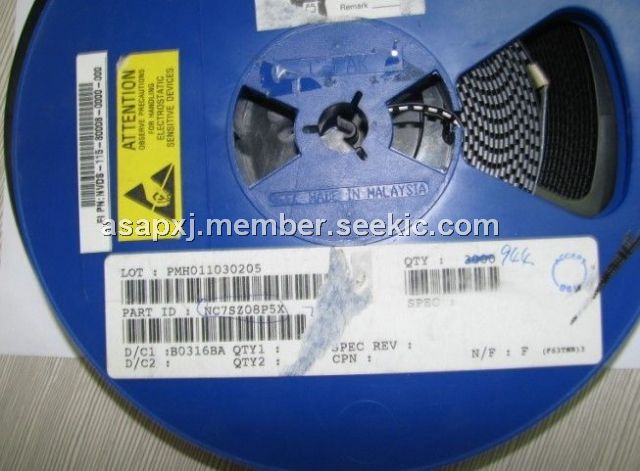

NC7SZ08P5X

single 2-Input AND Gate, SOT-353, -0.5V to +6V, +20mA, Ultra High Speed

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.00~5.00

PartNumber:: NC7SZ08P5X

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-30

From Other Seller

Part Number:NC7SZ08P5X
US $0.00 - 5.00
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The NC7SZ08P5X is a single 2-Input AND Gate from Fairchild’s Ultra High Speed Series of TinyLogic. The NC7SZ08P5X is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while main-taining low static power dissipation over a very broad VCC operating range. The NC7SZ08P5X is specified to operate over the 1.65V to 5.5V VCC range. The inputs and output are high impedance when VCC is 0V. Inputs tolerate voltages up to 6V independent of VCC operating voltage.

Parametrics

NC7SZ08P5X absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +6V; (2)DC Input Voltage (VIN): -0.5V to +6V; (3)DC Output Voltage (VOUT): -0.5V to +6V; (4)DC Input Diode Current (IIK): -50mA at VIN < -0.5V; +20mA at VIN > 6V; (5)DC Output Diode Current (IOK): -50mA at VOUT < -0.5V; +20mA at VOUT > 6V, VCC = GND; (6)DC Output Current (IOUT): ±50 mA; (7)DC VCC/GND Current (ICC/IGND): ±50 mA; (8)Storage Temperature (TSTG): -65 to +150℃; (9)Junction Temperature under Bias (TJ): 150℃; (10)Junction Lead Temperature (TL) (Soldering, 10 seconds): 260℃; (11)Power Dissipation (PD): 200 mW.

Features

NC7SZ08P5X features: (1)Space saving SOT23 or SC70 5-lead package; (2)Ultra small MicroPak leadless package; (3)Ultra High Speed; tPD 2.7 ns Typ into 50 pF at 5V VCC; (4)High Output Drive; ±24 mA at 3V VCC; (5)Broad VCC Operating Range; 1.65V to 5.5V; (6)Matches the performance of LCX when operated at 3.3V VCC; (7)Power down high impedance inputs/output; (8)Overvoltage tolerant inputs facilitate 5V to 3V translation; (9)Patented noise/EMI reduction circuitry implemented.
