Product Summary

The MM74HC374SJX high speed Octal D-Type Flip-Flop utilizes advanced silicon-gate CMOS technology. It posses the high noise immunity and low power consumption of standard CMOS integrated circuits, as well as the ability to drive 15 LS-TTL loads. Due to the large output drive capability and the 3-STATE feature, the MM74HC374SJX is ideally suited for interfacing with bus lines in a bus organized system.

Parametrics

MM74HC374SJX absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to +7.0V; (2)DC Input Voltage (VIN): -1.5 to VCC +1.5V; (3)DC Output Voltage (VOUT): -0.5 to VCC +0.5V; (4)Clamp Diode Current (IIK, IOK): ±20 mA; (5)DC Output Current, per pin (IOUT): ±35 mA; (6)DC VCC or GND Current, per pin (ICC): ±70 mA; (7)Storage Temperature Range (TSTG): -65℃ to +150℃; (8)Power Dissipation (PD): 600 mW, S.O. Package only: 500 mW; (9)Lead Temperature (TL): (Soldering 10 seconds) 260℃.

Features

MM74HC374SJX features: (1)Typical propagation delay: 20 ns; (2)Wide operating voltage range: 2–6V; (3)Low input current: 1 mA maximum; (4)Low quiescent current: 80 mA maximum; (5)Compatible with bus-oriented systems; (6)Output drive capability: 15 LS-TTL loads.

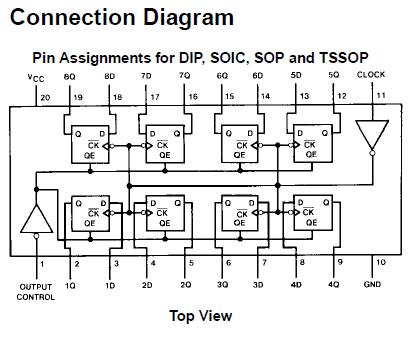

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MM74HC374SJX
MM74HC374SJX
Fairchild Semiconductor
Flip Flops 3-ST Oct D Flip-Flop
Data Sheet
0-1: $0.37
1-25: $0.28
25-100: $0.25
100-250: $0.21
