FQPF8N60C

N-Channel MOSFET, TO-220F, 28 nC gate charge, 12 pF Low Crss, Fast switching

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: FQPF8N60C

Brand:: Fairchild Semiconductor - Fairchild | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-26

From Other Seller

Part Number:FQPF8N60C
US $0.10 - 1.00
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The N-Channel enhancement mode power field effect transistor FQPF8N60C is produced using Fairchild proprietary, planar stripe, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. The FQPF8N60C is well suited for high efficiency switched mode power supplies, active power factor correction, electronic lamp ballasts based on half bridge topology.

Parametrics

FQPF8N60C absolute maximum ratings: (1)VDSS Drain-Source Voltage: 600 V; (2)ID Drain Current: Continuous (TC = 25℃): 7.5 * A; Continuous (TC = 100℃): 4.6 * A; (3)IDM Drain Current - Pulsed: 30 * A; (4)VGSS Gate-Source Voltage: ± 30 V; (5)EAS Single Pulsed Avalanche Energy: 230 mJ; (6)IAR Avalanche Current: 7.5 A; (7)EAR Repetitive Avalanche Energy: 14.7 mJ; (8)dv/dt Peak Diode Recovery dv/dt: 4.5 V/ns; (9)PD Power Dissipation (TC = 25℃): 48 W; Derate above 25℃: 0.38 W/℃; (10)TJ, TSTG Operating and Storage Temperature Range: -55 to +150 ℃; (11)TL Maximum lead temperature for soldering purposes, 1/8" from case for 5 seconds: 300 ℃.

Features

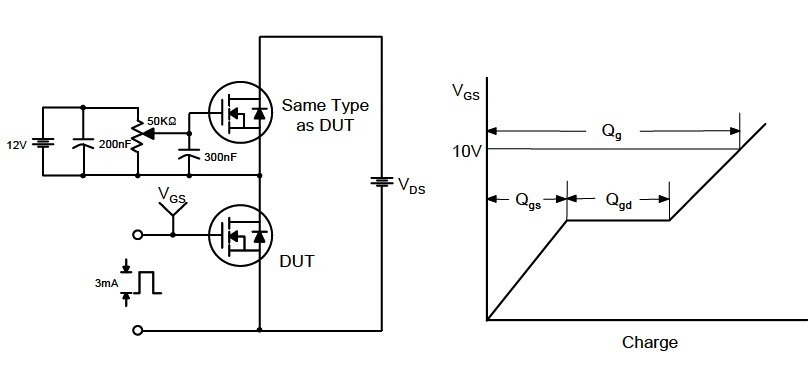

FQPF8N60C features: (1)7.5A, 600V, RDS(on) = 1.2Ω @VGS = 10 V; (2)Low gate charge ( typical 28 nC); (3)Low Crss ( typical 12 pF); (4)Fast switching; (5)100% avalanche tested; (6)Improved dv/dt capability.
