MIC4420BM-TR

MIC4420BM-TR, 6A-Peak low-side MOSFET driver, SOP8, 20V, 50mA, 12.5W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.31~0.32 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.31~0.32

PartNumber:: MIC4420BM-TR

Brand:: Micrel Semiconductor - Micrel | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-16

From Other Seller

Part Number:MIC4420BM-TR
US $0.31 - 0.32
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

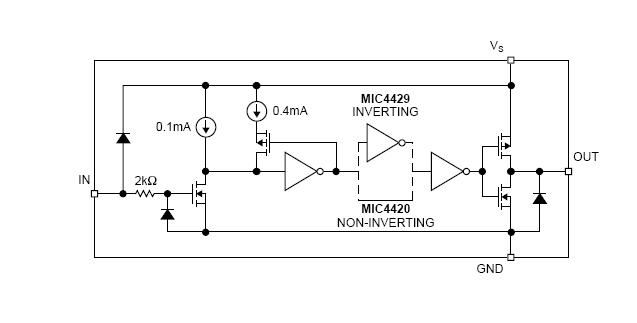

The MIC4420BM-TR is a 6A-Peak low-side MOSFET driver. It is easy to use. The MIC4420BM-TR is a non-inverting driver. It is capable of 6A (peak) output and can drive the largest MOSFETs with an improved safe operating margin. The MIC4420BM-TR accepts any logic input from 2.4V to VS without external speed-up capacitors or resistor networks. Proprietary circuits allow the input to swing negative by as much as 5V without damaging the part. Additional circuits protect against damage from electrostatic discharge. The applications of the MIC4420BM-TR include Switch Mode Power Supplies, Motor Controls, Pulse Transformer Driver, Class-D Switching Amplifiers.

Parametrics

MIC4420BM-TR absolute maximum ratings: (1)Supply Voltage: 20V; (2)Input Voltage: VS + 0.3V to GND – 5V; (3)Input Current (VIN＞VS): 50mA; (4)Power Dissipation, TA≤25℃: PDIP: 960W, SOIC: 1040mW, 5-Pin TO-220: 2W; (5)Power Dissipation, TC≤25℃: 5-Pin TO-220: 12.5W; (6)Derating Factors (to Ambient): PDIP: 7.7mW/℃, SOIC:8.3mW/℃, 5-Pin TO-220: 17mW/℃; (7)Storage Temperature: –65℃ to +150℃; (8)Lead Temperature (10 sec.): 300℃.

Features

MIC4420BM-TR features: (1)CMOS Construction; (2)Latch-Up Protected: Will Withstand ＞500mA Reverse Output Current; (3)Logic Input Withstands Negative Swing of Up to 5V; (4)Matched Rise and Fall Times: 25ns; (5)High Peak Output Current: 6A Peak; (6)Wide Operating Range: 4.5V to 18V; (7)High Capacitive Load Drive: 10,000pF; (8)Low Delay Time: 55ns Typ; (9)Logic High Input for Any Voltage From 2.4V to VS; (10)Low Equivalent Input Capacitance (typ):6pF; (11)Low Supply Current: 450μA With Logic 1 Input; (12)Low Output Impedance: 2.5Ω; (13)Output Voltage Swing Within 25mV of Ground or VS.
