Product Summary
The monolithic integrated circuit MGM3000X is especially suitable as a modulator for the 48 to 860 MHz frequency range Video recorders, cable converters, TV-converter networks, demodulators, video generators, video security systems, amateur TV-applications and personal computers.
Parametrics
MGM3000X absolute maximum ratings: (1)Supply voltage pin 8 VS: -0.3 to 14.5 V; (2)Current from pin 2 - I2: 0 to 2 mA; (3)Voltage at pin 1 V1: 0 to 2V; (4)Voltage at pin 2 V2: 6 to 8.5V; (5)Voltage at pin 12: 0 to 1.5VPP; (6)Capacitance at pin 2 C2: 0 to 100nF; (7)Capacitance at pin 13 C13: 0 to 15μF; (8)Voltage at pin 14 V14: - 0.3 to 1.4V; (9)Voltage at pin 15 V15: V2 to 13.5V; (10)Voltage at pin 17 V17: V2 to 13.5V; (11)Voltage at pin 18 V18: V2-1.5 to V2+1.5 V.
Features
MGM3000X features: (1)FM- and AM-audio modulator; (2)Audio carrier output for suppression of harmonics; (3)Sync leveclamping of video input signal; (4)Controlling of peak white value; (5)Continuous adjustment of modulation depth for positive or negative values; (6)Symmetricamixer output with separate ground area; (7)Symmetricaoscillator with separate RF-ground; (8)Low spurious radiation; (9)High stability of the RF-oscillator frequency; (10)High stability of the audio oscillator; (11)Internareference voltage; (12)12 V supply voltage.

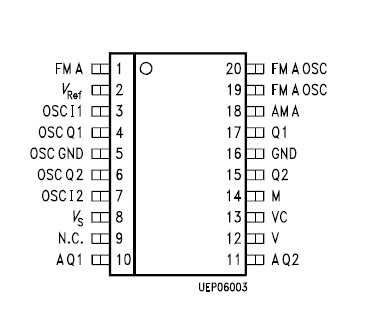

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MGM3000X |
Other |
|
Data Sheet |
Negotiable |
|
||||
