Product Summary

The 50WQ06FNTRL surface mount Schottky rectifier has been designed for applications requiring low forward drop and small foot prints on PC board. Typical applications are in disk drives, switching power supplies, converters, free-wheeling diodes, battery charging, and reverse battery protection.

Parametrics

Absolute maximum ratings: (1)Max. Average Forward Current: 5.5 A at 50% duty cycle @ TC = 132℃ rectangular wave form; (2)Max. Peak One Cycle Non-Repetitive: 320 A at 5μs Sine or 3μs Rect. pulse; (3)Non-Repetitive Avalanche Energy: 7 mJ at TJ = 25 ℃ IAS = 1.2 Amps, L = 10 mH; (4)Repetitive Avalanche Current: 0.8 A at Current decaying linearly to zero in 1μsec, Frequency limited by TJ max. VA = 1.5 x VR typical.

Features

Features: (1)Popular D-PAK outline; (2)Small foot print, surface moutable; (3)Low forward voltage drop; (4)High frequency operation; (5)Guard ring for enhanced ruggedness and long term reliability.

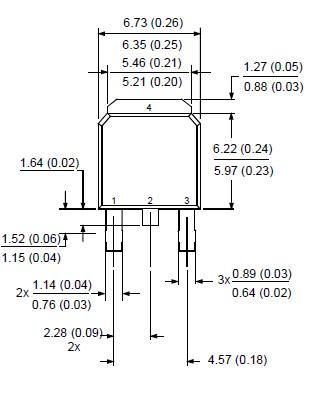

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
50WQ06FNTRL
50WQ06FNTRL
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 5.5 Amp 60 Volt
Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
50WQ03FNTRR
50WQ03FNTRR
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 5.5 Amp 30 Volt
Data Sheet
Negotiable
50WQ04FN
50WQ04FN
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 5.5 Amp 40 Volt
Data Sheet
Negotiable
50WQ04FNPBF
50WQ04FNPBF

DIODE SCHOTTKY 40V 5.5A D-PAK
Data Sheet
0-1: $0.88
1-10: $0.78
10-25: $0.71
25-100: $0.62
100-250: $0.54
250-500: $0.48
500-1000: $0.38
1000-2500: $0.35
2500-5000: $0.34
50WQ04FNTR
50WQ04FNTR
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 5.5 Amp 40 Volt
Data Sheet
Negotiable
50WQ04FNTRL
50WQ04FNTRL
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 5.5 Amp 40 Volt
Data Sheet
Negotiable
50WQ04FNTRR
50WQ04FNTRR
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 5.5 Amp 40 Volt
Data Sheet
Negotiable
