MC13156DW

Wideband FM IF System, SOP, 2.0 to 6.0 Vdc Operation, 80 dB

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~2.00

PartNumber:: MC13156DW

Brand:: Motorola, Inc - Motorola | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-26

From Other Seller

Part Number:MC13156DW
US $0.10 - 2.00
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

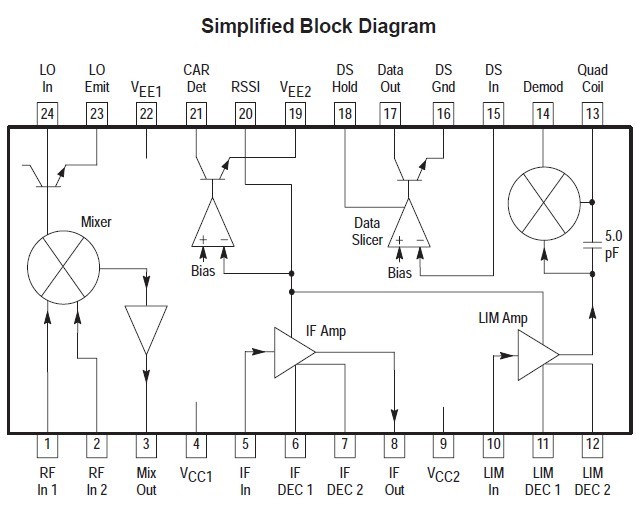

The MC13156DW is a wideband FM IF subsystem targeted at high performance data and analog applications. Excellent high frequency performance is achieved at low cost using Motorola’s MOSAIC 1.5E bipolar process. The MC13156DW has an onboard grounded collector VCO transistor that may be used with a fundamental or overtone crystal in single channel operation or with a PLL in multichannel operation. The mixer is useful to 500 MHz and may be used in a balanced–differential, or single–ended configuration. The IF amplifier is split to accommodate two low cost cascaded filters. RSSI output is derived by summing the output of both IF sections. A precision data shaper has a hold function to preset the shaper for fast recovery of new data. Applications for the MC13156DW include CT–2, wideband data links and other radio systems utilizing GMSK, FSK or FM modulation.

Parametrics

MC13156DW absolute maximum ratings: (1)Power Supply Voltage 16, 19, 22 VEE(max): –6.5 Vdc; (2)Junction Temperature TJ(max): 150 ℃; (3)Storage Temperature Range Tstg: –65 to +150 ℃.

Features

MC13156DW features: (1)2.0 to 6.0 Vdc Operation; (2)Typical Sensitivity at 200 MHz of 2.0 mV for 12 dB SINAD; (3)RSSI Dynamic Range Typically 80 dB; (4)High Performance Data Shaper for Enhanced CT Operation; (5)Internal 330 W and 1.4 kW Terminations for 10.7 MHz and 455kHz Filters; (6)Split IF for Improved Filtering and Extended RSSI Range; (7)3rd Order Intercept (Input) of 5 dBm (Input Matched).
