Product Summary
The MC10E457FN is a 3-bit differential 2:1 multiplexer. The fully differential data path makes the MC10E457FN ideal for multiplexing low skew clock or other skew sensitive signals. The higher frequency outputs provide the device with a > 1.0 GHz bandwidth to meet the needs of the most demanding system clock. Both, separate selects and a common select, are provided to make the MC10E457FN well suited for both data path and random logic applications.
Parametrics
MC10E457FN absolute maximum ratings: (1)PECL Mode Power Supply VEE = 0 V, VCC: 8 V; (2)NECL Mode Power Supply VCC = 0 V, VEE: -8 V; (3)PECL Mode Input Voltage, VEE = 0 V, VI ≤ VCC, VI: 6V; NECL Mode Input Voltage, VCC = 0 V, VI ≥ VEE, VI: -6V; (4)Output Current, Continuous, Iout: 50mA; Surge, Iout: 100mA; (5)VBB Sink/Source, IBB: ±0.5 mA; (6)Operating Temperature Range, TA: 0 to +85℃; (7)Storage Temperature Range, Tstg: -65 to +150℃; (8)Thermal Resistance (Junction-to-Ambient), 0 lfpm, PLCC-28, θJA: 63.5℃/W; 500 lfpm, PLCC-28, θJA: 43.5℃/W; (9)Thermal Resistance (Junction-to-Case), Standard Board, PLCC-28, θJC: 22 to 26℃/W; (10)Wave Solder, Pb, Tsol: 265℃; Pb-Free, Tsol: 265℃.
Features
MC10E457FN features: (1)Differential D and Q; VBB available; (2)700 ps Max. Propagation Delay; (3)High Frequency Outputs; (4)Separate and Common Select; (5)PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V; (6)NECL Mode Operating Range: VCC = 0 V with VEE = -4.2 V to -5.7 V; (7)Internal Input 50 kΩ Pulldown Resistors; (8)ESD Protection: Human Body Model; > 2 kV, Machine Model; > 200 V; (9)Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test; (10)Moisture Sensitivity Level: Pb = 1; Pb-Free = 3 For Additional Information, see Application Note AND8003/D; (11)Flammability Rating: UL 94 V-0 @ 0.125 in, Oxygen Index: 28 to 34; (12)Transistor Count = 218 devices; (13)Pb-Free Packages are Available.

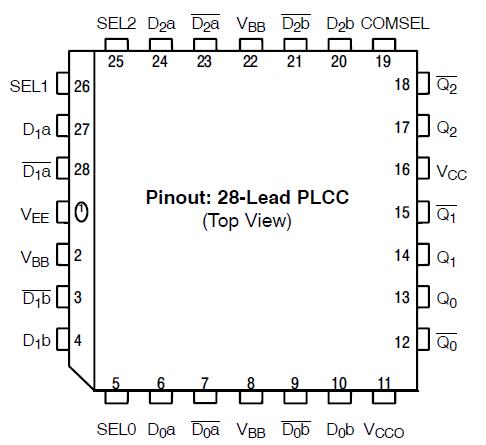

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC10E457FN |
ON Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers 5V ECL Triple Diff |
Data Sheet |
Negotiable |
|
||||||||||
|
MC10E457FNG |
ON Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers 5V ECL Triple Diff 2:1 Mux |
Data Sheet |
Negotiable |
|
||||||||||
|
MC10E457FNR2G |
ON Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers 5V ECL Triple Diff 2:1 Mux |
Data Sheet |
|
|
||||||||||
|
MC10E457FNR2 |
ON Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers 5V ECL Triple Diff |
Data Sheet |
Negotiable |
|
||||||||||
