Product Summary

The M93C66-WMN6TP is an electrically erasable programmable memory (EEPROM) device. It is accessed through a Serial Data input (D) and Serial Data output (Q) using the MICROWIRE bus protocol.

Parametrics

M93C66-WMN6TP absolute maximum ratings: (1)Ambient operating temperature: -40 to 130 ℃; (2)Storage temperature: -65 to 150 ℃; (3)lead temperature during soldering: 260 ℃; (4)Output range (Q = VOH or Hi-Z): -0.50 to VCC+0.5 V; (5)Input range: -0.50 to VCC+1 V; (6)Supply voltage: -0.50 to 6.5 V; (7)Electrostatic discharge voltage (human body model): -4000 to 4000 V.

Features

M93C66-WMN6TP features: (1)Industry standard MICROWIRE bus; (2)Single supply voltage: 4.5 V to 5.5 V; (3)Dual organization: by word (x16) or byte (x8); (4)Programming instructions that work on: byte, word or entire memory; (5)Self-timed programming cycle with autoerase: 5 ms; (6)READY/BUSY signal during programming; (7)2 MHz clock rate; (8)Sequential read operation; (9)Enhanced ESD/latch-up behavior; (10)More than 1 million write cycles; (11)More than 40 year data retention; (12)Packages: ECOPACK (RoHS compliant).

Diagrams

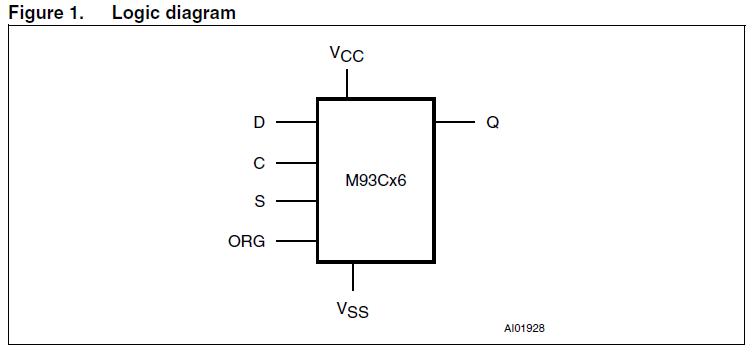

M93C66-WMN6TP logic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

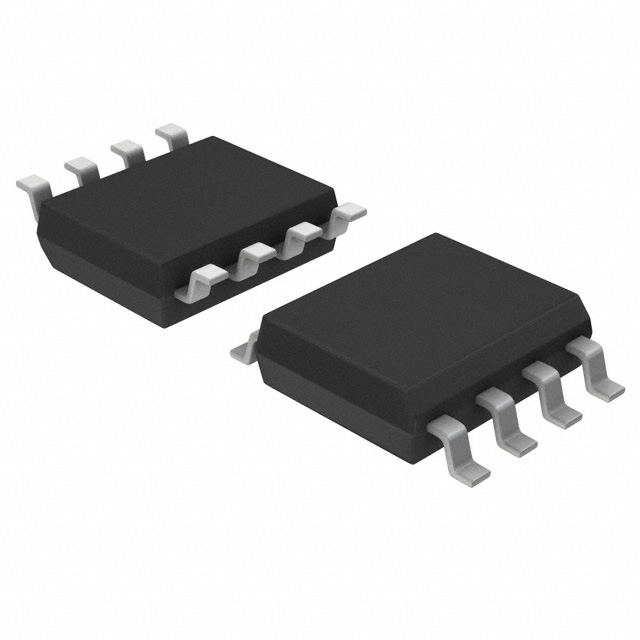

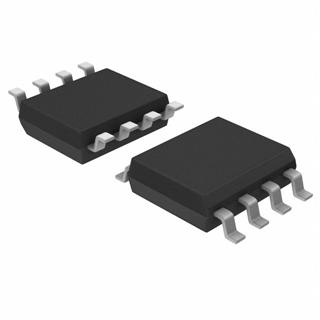

M93C66-WMN6TP
M93C66-WMN6TP
STMicroelectronics
EEPROM 2.5 V to 5.5 V 4K
Data Sheet
0-1: $0.16
1-10: $0.14
10-100: $0.12
100-250: $0.11
