Product Summary

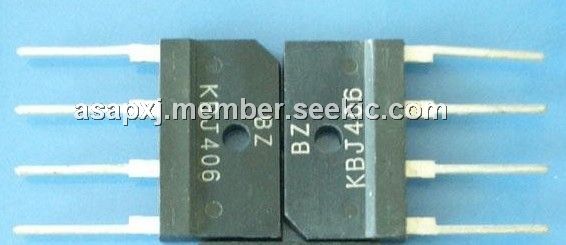

The KBJ406 is a single phase 4.0 amp bridge rectifier.

Parametrics

KBJ406 absolute maximum ratings: (1)maximum recurrent peak reverse voltage: 600V; (2)maximum RMS voltage: 420V; (3)maximum DC blocking voltage: 600V; (4)maximum average forward rectified current, 375"(9.5mm) lead length at Ta=50℃: 4.0A; (5)maximum forward voltage drop per bridge element at 2.0A DC: 1.0V; (6)maximum DC reverse current Ta=25℃: 10μA; at rated DC blocking voltage Ta=100℃: 500μA; (7)operating temperature range, Tj: -65 to +125℃; (8)storage temprature range, Tstg: -65 to +150℃.

Features

KBJ406 features: (1)idea for printed circuit board; (2)low forward voltage; (3)low leakage current; (4)plarity: marked on body; (5)mounting position: any; (6)weight: 4.8grams; (7)both normal and Pb free rpoduct are available: normal: 80~95%Sn,5~20%Pb; (8)Pb free:99 Sn above can meet Rohs enviroment substance directive request.

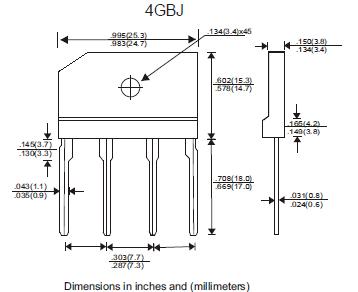

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
KBJ406G
KBJ406G

Diodes Inc.

Bridge Rectifiers 4.0A 600V

Data Sheet

0-1: $0.99
1-10: $0.86
10-100: $0.66
100-250: $0.55
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
KBJ4005G
KBJ4005G

Diodes Inc.

Bridge Rectifiers 4.0A 50V

Data Sheet

0-1: $0.86
1-10: $0.76
10-100: $0.60
100-250: $0.53
KBJ401
KBJ401

Other


Data Sheet

Negotiable
KBJ401G
KBJ401G

Diodes Inc.

Bridge Rectifiers 4.0A 100V

Data Sheet

0-1: $0.88
1-10: $0.78
10-100: $0.61
100-250: $0.54
KBJ401G THRU KBJ410G
KBJ401G THRU KBJ410G

Other


Data Sheet

Negotiable
KBJ402G
KBJ402G

Diodes Inc.

Bridge Rectifiers 4.0A 200V

Data Sheet

0-1: $0.91
1-10: $0.80
10-100: $0.63
100-250: $0.56
KBJ404G
KBJ404G

Diodes Inc.

Bridge Rectifiers 4.0A 400V

Data Sheet

0-1: $0.92
1-10: $0.82
10-100: $0.64
100-250: $0.57
