Product Summary

The HSMP-3830-TR1 is a Surface Mount RF PIN Switch Diode. The HSMP-3830-TR1 is optimized for switching applications where low resistance at low current and low capacitance are required. The device features ultra low parasitic inductance. The HSMP-3830-TR1 is specifically designed for use at frequencies which are much higher than the upper limit for conventional PIN diodes.

Parametrics

HSMP-3830-TR1 absolute maximum ratings: (1)If Forward Current (1 μs Pulse) Amp: 1; (2)PIV Peak Inverse Voltage V: 100; (3)Tj Junction Temperature ℃: 150; (4)Tstg Storage Temperature ℃: -65 to 150; (5)θjc Thermal Resistance ℃/W: 500.

Features

HSMP-3830-TR1 features: (1)Unique Configurations in Surface Mount Packages; (2)Low Capacitance; (3)Low Resistance at Low Current; (4)Low Failure in Time (FIT) Rate; (5)Matched Diodes for Consistent Performance; (6)Better Thermal Conductivity for Higher Power Dissipation; (7)Lead-free Option Available.

Diagrams

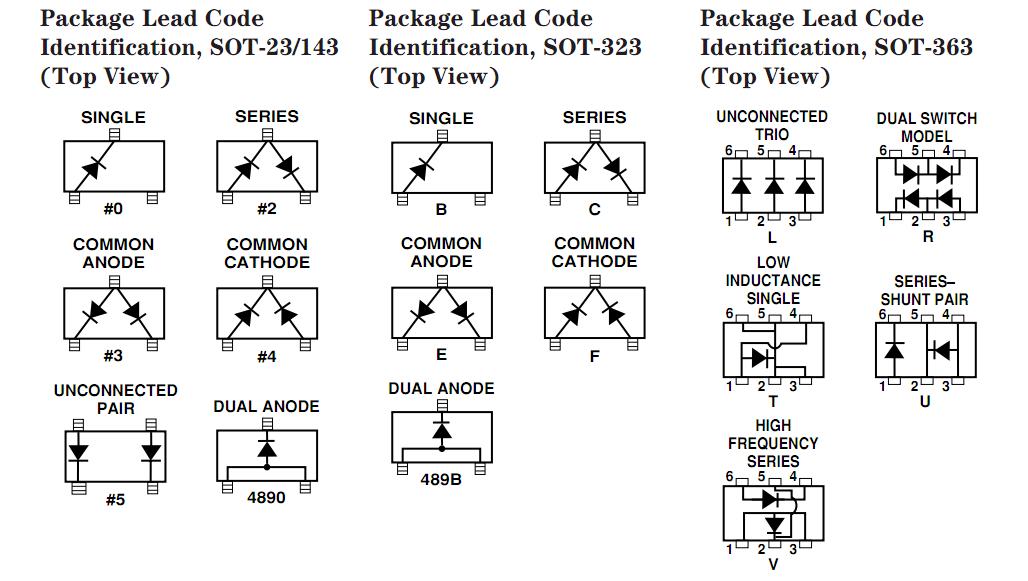

HSMP-3830-TR1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HSMP-3830-TR1
HSMP-3830-TR1


DIODE PIN GP 200V 1A SOT-23

Data Sheet

Negotiable
HSMP-3830-TR1G
HSMP-3830-TR1G

Avago Technologies

PIN Diodes 200 VBR 0.3 pF

Data Sheet

0-1890: $0.31
1890-3000: $0.29
3000-6000: $0.27
6000-12000: $0.25
