Product Summary
The LM4913MH is both a mono differential output (for bridge-tied loads, or BTL) audio power amplifier and a single-ended (SE) stereo headphone amplifier. It is designed for notebook and other handheld portable applications. It delivers high quality output power from a surface-mount package and requires few external components.
Parametrics
Absolute maximum ratings: (1)Supply Voltage: 6.0V; (2)Storage Temperature: -65℃ to +150℃ (3)Input Voltage: -0.3V to VDD +0.3V; (4)Power Dissipation: Internally Limited; (5)ESD Susceptibility: 2000V; (6)ESD Susceptibility: 200V; (7)Junction Temperature: 150℃.
Features
Features: (1)Advanced "click and pop" suppression circuitry; (2)Stereo headphone amplifier mode; (3)Low current micro-power shutdown mode; (4)Thermal shutdown protection circuitry; (5)2.5V to 5.5V operation; (6)Unity-gain stable; (7)Gain set with external resistors; (8)Space-saving exposed-DAP TSSOP package.

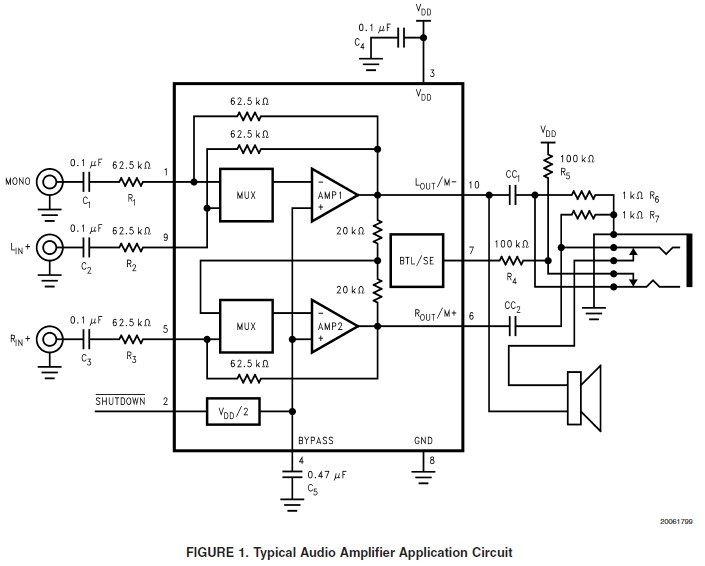

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
LM4913MH/NOPB |
IC AMP AUDIO MONO/STER 10TSSOP |
Data Sheet |
Negotiable |
|
||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
LM4900 |
Other |
Data Sheet |
Negotiable |
|
||||||||
LM4900LD |
IC AMP AUDIO PWR .675W MONO 8LLP |
Data Sheet |
Negotiable |
|
||||||||
LM4900M/NOPB |
IC AMP AUDIO PWR .675W AB 8SOIC |
Data Sheet |
Negotiable |
|
||||||||
LM4900MM/NOPB |
IC AMP AUDIO PWR .675W AB 8MSOP |
Data Sheet |
Negotiable |
|
||||||||
LM4900MMBD |
BOARD EVALUATION LM4900MM |
Data Sheet |
|
|
||||||||
LM4901 |
Other |
Data Sheet |
Negotiable |
|
