Product Summary
The AT24C16 is a Two-wire Automotive Serial EEPROM. The AT24C16 is optimized for use in many automotive applications where low-power and low-voltage operation are essential. The device is available in space-saving 8-lead PDIP and 8-lead JEDEC SOIC packages. It is accessed via a two-wire serial interface.
Parametrics
AT24C16 absolute maximum ratings: (1)Operating Temperature:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground:-1.0V to +7.0V; (4)Maximum Operating Voltage:6.25V; (5)DC Output Current:5.0 mA.
Features
AT24C16 features: (1)Two-wire Serial Interface; (2)Schmitt Trigger, Filtered Inputs for Noise Suppression; (3)Bi-directional Data Transfer Protocol; (4)100 kHz (2.7V) and 400 kHz (5V) Compatibility; (5)Write Protect Pin for Hardware Data Protection; (6)8-byte Page (1K, 2K), 16-byte Page (4K, 8K, 16K) Write Modes; (7)Partial Page Writes are Allowed; (8)Self-timed Write Cycle (5 ms max); (9)High-reliability:Endurance: 1 Million Write Cycles,Data Retention: 100 Years; (10)8-lead PDIP and 8-lead JEDEC SOIC Packages; (11)Medium-voltage and Standard-voltage Operation:5.0 (VCC = 4.5V to 5.5V),2.7 (VCC = 2.7V to 5.5V); (12)Internally Organized 128 x 8 (1K), 256 x 8 (2K), 512 x 8 (4K),1024 x 8 (8K) or 2048 x 8 (16K).

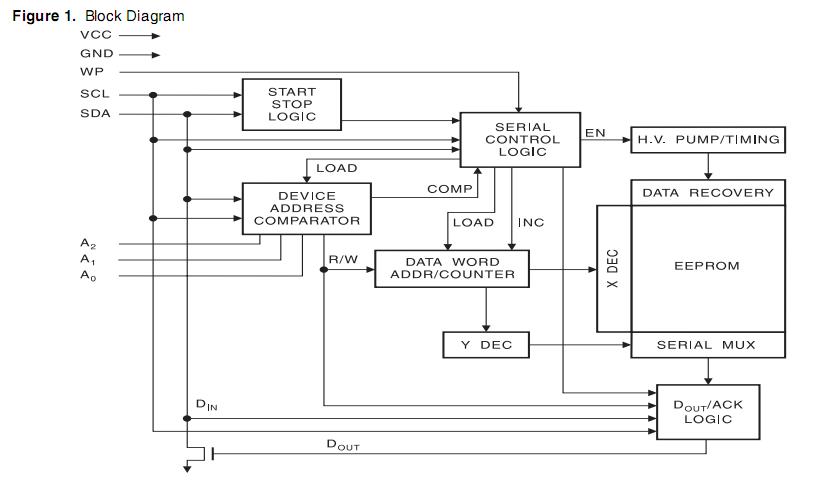

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
AT24C16-10PC |
Atmel |
EEPROM 16k 2-Wire Bus |
Data Sheet |
Negotiable |
|
|||||
AT24C16-10PC-1.8 |
Atmel |
IC SEEPROM 16K 1.8V 8DIP |
Data Sheet |
Negotiable |
|
|||||
AT24C16-10PI-1.8 |
IC EEPROM 16KBIT 400KHZ 8DIP |
Data Sheet |
Negotiable |
|
||||||
AT24C16-10PC-2.5 |
Atmel |
IC SEEPROM 16K 2.5V 8DIP |
Data Sheet |
Negotiable |
|
|||||
AT24C16-10PC-2.7 |
Atmel |
IC SEEPROM 16K 2.7V 8DIP |
Data Sheet |
Negotiable |
|
|||||
AT24C16-10PI |
Atmel |
IC SEEPROM 16K 8DIP |
Data Sheet |
Negotiable |
|
|||||
AT24C16-10TI-1.8 |
Atmel |
EEPROM 16k 2-Wire Bus |
Data Sheet |
Negotiable |
|
|||||
AT24C16-10SC |
Atmel |
EEPROM 16k 2-Wire Bus |
Data Sheet |
Negotiable |
|
