Product Summary

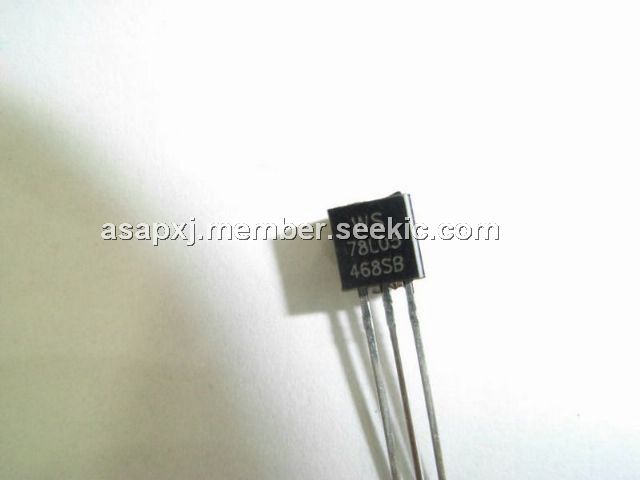

The 78L05 is a voltage regulator. It is designed for a wide range of applications. The applictions of 78L05 are on-card regulation for elimination of noise and distribution problems associated with single point regulation.
Parametrics
78L05 absolute maximum ratings: (1)Maximum Input Voltage: 30V; (2)Operation Junction Temperature Range: -40 ℃ to 125 ℃.
Features
78L05 features: (1)Output current in excess of 100 mA; (2)No external components required Internal short circuit current limiting; (3)Internal thermal overload protection; (4)Available in either 5% selections.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
78L05 |
Other |
Data Sheet |
Negotiable |
|
||||||
78L05AC |
Other |
Data Sheet |
Negotiable |
|
