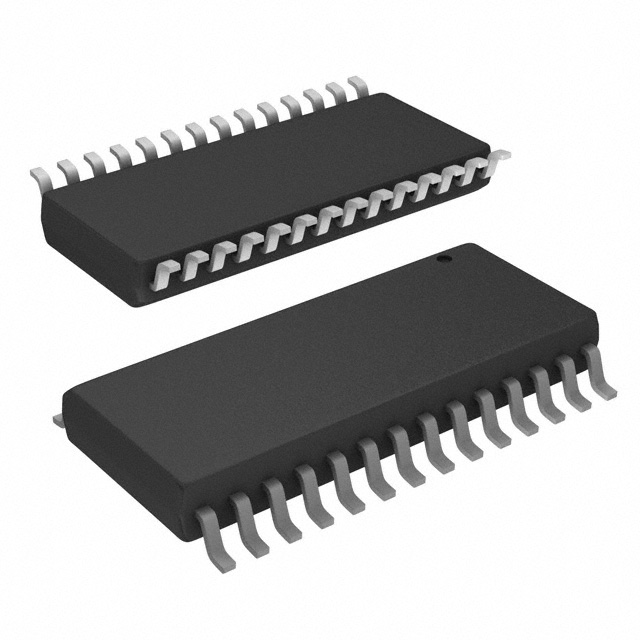

AD9760AR

10-Bit, 125 MSPS, TxDAC D/A Converter, 28-SOIC, 2 mA to 20 mA, 175 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.24~6.24 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.24~6.24

PartNumber:: AD9760AR

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:AD9760AR
US $6.24 - 6.24
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD9760AR is a high performance, low power CMOS digital-to-analog converter. It shares the same interface options, small outline package and pinout, thus providing an upward or downward component selection path based on performance, resolution and cost. The AD9760AR that consists of pin compatible 8-, 10-, 12- and 14-bit DACs is specifically optimized for the transmit signal path of communication systems. The applications of the AD9760AR are Basestations, Set Top Boxes, Digital Radio Link, Direct Digital Synthesis (DDS), Instrumentation.

Parametrics

AD9760AR absolute maximum ratings: (1)AVDD:–0.3V to +6.5V; (2)DVDD:–0.3V to +6.5V; (3)ACOM:–0.3V to +0.3V; (4)AVDD:–6.5V to +6.5V; (5)CLOCK, SLEEP:–0.3V to DVDD + 0.3V; (6)Digital Inputs:–0.3V to DVDD + 0.3V; (7)IOUTA, IOUTB:–1.0V to AVDD + 0.3V; (8)COMP1, COMP2:–0.3V to AVDD + 0.3V; (9)REFIO, FSADJ:–0.3V to AVDD + 0.3V; (10)REFLO:–0.3V to +0.3V; (11)Junction Temperature:+150℃; (12)Storage Temperature:–65℃ to +150℃; (13)Lead Temperature(10 sec):+300℃.

Features

AD9760AR features: (1)Member of Pin-Compatible TxDAC Product Family; (2)125 MSPS Update Rate; (3)10-Bit Resolution; (4)Excellent Spurious Free Dynamic Range Performance; (5)SFDR to Nyquist @ 40 MHz Output: 52 dBc; (6)Differential Current Outputs: 2 mA to 20 mA; (7)Power Dissipation: 175 mW @ 5 V to 45mW @ 3 V; (8)Power-Down Mode: 25 mW @ 5 V; (9)On-Chip 1.20 V Reference; (10)Single +5 V or +3 V Supply Operation; (11)Packages: 28-Lead SOIC and TSSOP; (12)Edge-Triggered Latches.
