Product Summary
The AD8611ARZ is a single and dual 4 ns comparator with latch function and complementary output. The latch is not functional if VCC is less than 4.3 V. Fast 4 ns propagation delay makes the AD8611ARZ good choices for timing circuits and line receivers. Propagation delays for rising and falling signals are closely matched and tracked over temperature. This matched delay makes the AD8611ARZ good choices for clock recovery because the duty cycle of the output matches the duty cycle of the input.
Parametrics
AD8611ARZ absolute maximum ratings: (1)Total Analog Supply Voltage: 7.0 V; (2)Digital Supply Voltage: 7.0 V; (3)Input Voltage: ±4 V; (4)Differential Input Voltage: ±5 V; (5)Output Short-Circuit Duration to GND: Indefinite; (6)Storage Temperature Range R, RU, RM Packages: -65℃ to +150℃; (7)Operating Temperature Range: -40℃ to +85℃; (8)Junction Temperature Range R, RU, RM Packages: -65℃ to +150℃; (9)Lead Temperature Range (Soldering, 10 sec): 300℃.
Features
AD8611ARZ features: (1)4 ns propagation delay at 5 V; (2)Single-supply operation: 3 V to 5 V; (3)100 MHz input; (4)Latch function.

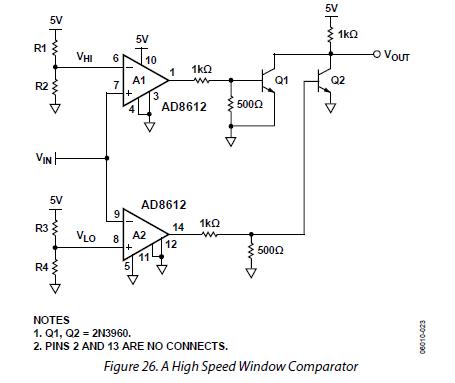

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8611ARZ |
|
IC COMP SNGL 4NS ULTRFAST 8-SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD8611ARZ-REEL |
|
IC COMP SGL 4NS ULTRFAST 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD8611ARZ-REEL7 |
|
IC COMP SGL 4NS ULTRFAST 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
