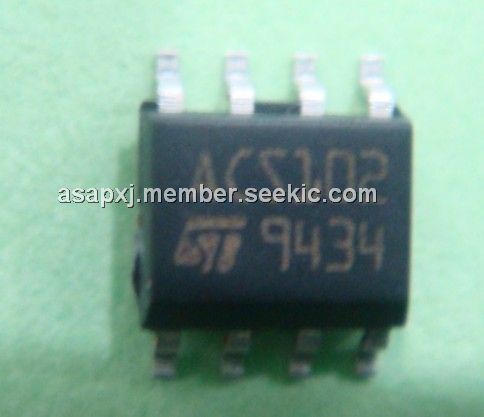

ACS102

AC line switch, SOP, 500 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: ACS102

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-23

From Other Seller

Part Number:ACS102
US $0.10 - 1.00
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
2N2905A

US $0.32 - 0.40 / Piece
(0) Remove
Quantity:

piece

Product Summary

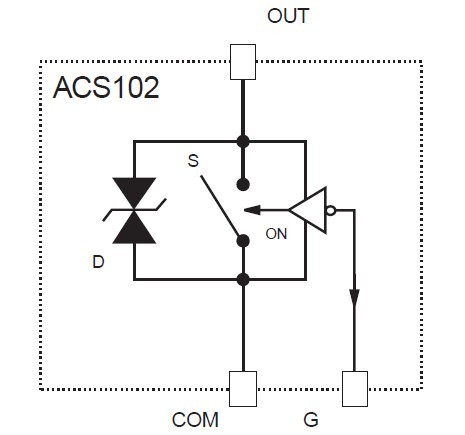

The ACS102 belongs to the AC line switch family built around the ASD concept. This high performance device is able to control an up to 0.3 A load device. The applications of the ACS102 include: (1)AC on-off static switching in appliance & industrial control systems; (2)Drive of low power high inductive or resistive loads like: relay, valve, solenoid, dispenser; pump, fan, micro-motor; low power lamp bulb, door lock.

Parametrics

ACS102 absolute maximum ratings: (1)VDRM / VRRM Repetitive peak off-state voltage Tj = 125 ℃: 500 V; (2)IT(RMS) RMS on-state current full cycle sine wave 50 to 60 Hz TO-92 Tamb = 100 ℃: 0.2 A; SO-8 Tamb = 100 ℃: 0.2 A; (3)ITSM Non repetitive surge peak on-state current Tj initial = 25℃, full cycle sine wave F =50 Hz: 7.3 A; F =60 Hz 8 A; (4)dI/dt Critical rate of repetitive rise of on-state current IG = 10mA with tr = 100ns F =120 Hz: 20 A/μs; (5)VPP Non repetitive line peak pulse voltage: 2 kV; (6)Tstg Storage temperature range: - 40 to + 150 ℃; (7)Tj Operating junction temperature range: - 30 to + 125 ℃; (8)Tl Maximum lead temperature for soldering during 10s: 260 ℃.

Features

ACS102 features: (1)Blocking voltage : VDRM / VRRM = 500V; (2)Clamping voltage : VCL = 600 V; (3)Nominal current : IT(RMS) = 0.2 A; (4)Gate triggering current : IGT < 5 mA; (5)Switch integrated driver; (6)Triggering current is sourced by the gate; (7)SO-8 package: drive referenceCOMconnected to 2 cooling pins; 3.5 mm creepage distance from pin OUT to other pins.
