Product Summary

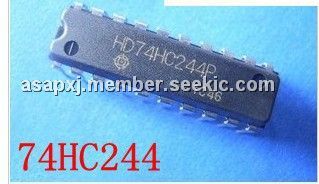

The 74HC244 is a high-speed Si-gate CMOS device. It is pin compatible with low power Schottky TTL(LSTTL). The device is specified in compliance with JEDEC standard no. 7A. The 74HC244 is an octal non-inverting buffer with 3-state outputs. The 3-state outputs are controlled by the output enable inputs 1OE and 2OE. A HIGH on nOE causes the outputs to assume a high impedance OFF-state. The 74HC244 is identical to the 240 but has non-inverting outputs.
Parametrics
74HC244 quick reference data:(1)propagation delay(CL = 15 pF; VCC =5V):1An to 1Yn; 2An to 2Yn:9ns; (2)input capacitance:3.5pF; (3)power dissipation capacitance per buffer:35pF.
Features
74HC244 features: (1)Output capability: bus driver; (2)ICC category: MSI.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC244 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
74HC244BQ,115 |
NXP Semiconductors |
Buffers & Line Drivers OCTAL BUFF/DRVR 3ST |
Data Sheet |
|
|
||||||||||||
 |
74HC244D,652 |
NXP Semiconductors |
Buffers & Line Drivers OCTAL BUFF/LDRVR 3ST |
Data Sheet |
|
|
||||||||||||
|
74HC244D,653 |
NXP Semiconductors |
Buffers & Line Drivers OCTAL BUFFER 3-STATE |
Data Sheet |
|
|
||||||||||||
|
74HC244DB,112 |
NXP Semiconductors |
Buffers & Line Drivers OCTAL BUFFER 3-STATE |
Data Sheet |
|
|
||||||||||||
 |
74HC244DB,118 |
NXP Semiconductors |
Buffers & Line Drivers OCTAL BUFFER 3-STATE |
Data Sheet |
|
|
||||||||||||
|
74HC244DB-T |
NXP Semiconductors |
Buffers & Line Drivers OCTAL BUFFER 3-STATE |
Data Sheet |
Negotiable |
|
||||||||||||
 |
74HC244DTR2G |
ON Semiconductor |
Buffers & Line Drivers OCTAL 3ST NONINVERT BUFFER LINE DRVR |
Data Sheet |
|
|
||||||||||||
