Product Summary
The TLP114A is a small outline coupler. It is suitable for surface mount assembly.The TLP114A consists of a high output power GaAAs light emitting diode, optically coupled to a high speed detector of one chip photodiode-transistor. Its applications include digital logic isolation, line receiver, power supply control feedback control, switching power supply and transistor inverter.
Parametrics
TLP114A absolute maximum ratings: (1)LED, Forward current, IF: 20 mA; Pulse forward current, IFP: 40 mA; Peak transient forward current, IFPT: 1 A; Reverse voltage, VR: 5 V; (2)Detector, Output current, IO: 8 mA; Peak output current, IOP: 16 mA; Supply voltage, VCC: -0.5 to 30 V; Output voltage, VO: -0.5 to 20 V; Output power dissipation, PO: 100 mW; (3)Operating temperature range, Topr: -55 to 100℃; (4)Storage temperature range, Tstg: -55 to 125℃; (5)Lead solder temperature(10 sec.), Tsol: 260℃; (6)Isolation Voltage (AC,1 min., R.H.≤ 60°%), BVS: 3750 Vrms.
Features
TLP114A features: (1)Isolation voltage: 3750 Vrms (min); (2)Switching speed: tpHL = 0.8μs, tpLH = 0.8μs (max)(RL = 1.9 kΩ); (3)TTL compatible; (4)UL recognized: UL1577, file no. E67349.

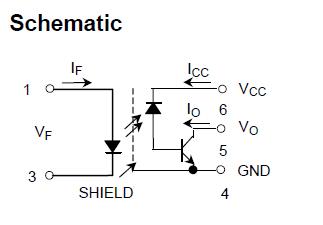

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP114A(IGM-TPRF) |
Toshiba |
High Speed Optocouplers MINIFLAT PKG COUPLER OPTOCPLR/SOLID STATE |
Data Sheet |
|
|
||||||||||||
|
TLP114A(TPR) |
|
TRANSCPLR HS TRANS OUT 6MFSOP-5 |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP114A(TPR,F) |
Toshiba |
High Speed Optocouplers IC cplr 1Mbps CTR=20%min |
Data Sheet |
Negotiable |
|
||||||||||||
 |
TLP114ATPLF |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP114AIGM |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP114A(IGM) |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP114A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
