Product Summary
The 2SJ211, P-channel vertical type MOSFET, is a switching device which can be driven directly by the output of ICs having a 5 V power source. The 2SJ211 has low on-state resistance and excellent switching characteristics. The 2SJ211 is suitable for driving actuators such as motors, relays, and solenoids.
Parametrics
2SJ211 absolute maximum ratings: (1)Drain to Source Voltage (VGS = 0 V): -100V; (2)Gate to Source Voltage (VDS = 0 V): ±20V; (3)Drain Current (DC): ±200mA; (4)Drain Current (pulse): ±400mA; (5)Total Power Dissipation: 200mW; (6)Channel Temperature: 150℃; (7)Storage Temperature: -55℃ to +150℃.
Features
2SJ211 features: (1) Directly driven by ICs having a 5 V power supply; (2)Not necessary to consider driving current because of its high input impedance; (3)Possible to reduce the number of parts by omitting the bias resistor.

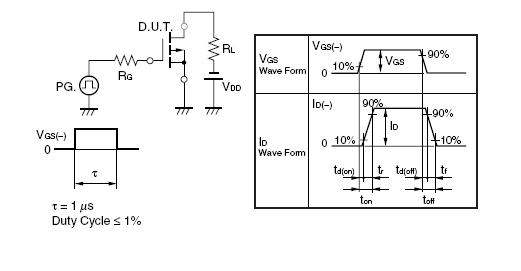

Diagrams
 |
