Product Summary

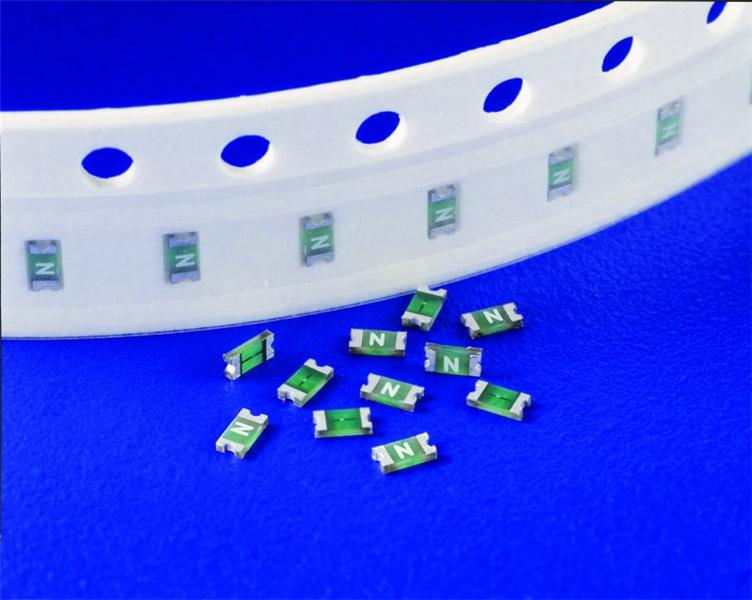

The 0467.500NR belongs to slimLine lead-free 0603 very fast-acting fuse 467 series.
Parametrics
0467.500NR absolute maximum ratings: (1)Operating Temperature: -55 to + 90℃; (2)Vibration: Per MIL-STD-202F; (3)Insulation Resistance (After Opening): Greater than 10,000 ohms.; (4)Resistance to Soldering Heat: Withstands 60 seconds above 200℃ up to 260℃, maximum; (5)Thermal Shock: Withstands 5 cycles of -55 to 125℃.
Features
0467.500NR features: (1)RoHS compliant and Lead-Free; (2)Product is compatible with lead-free solders and higher temperature profiles; (3)High performance materials provide improved performance in elevated ambient temperature applications; (4)Product is marked on top surface with code to allow amperage rating identification without testing; (5)Low profile for height sensitive applications; (6)Flat top surface for pick-and-place operations; (7)Element covering material is resistant to industry standard ; (8)cleaning operations; (9)Mounting pad and electrical performance is identical to Littelfuse 431 and 434 Series products; (10)Alloy based element construction provides superior inrush withstand characteristics (I2t) over ceramic or glass based 0603 fuse products.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

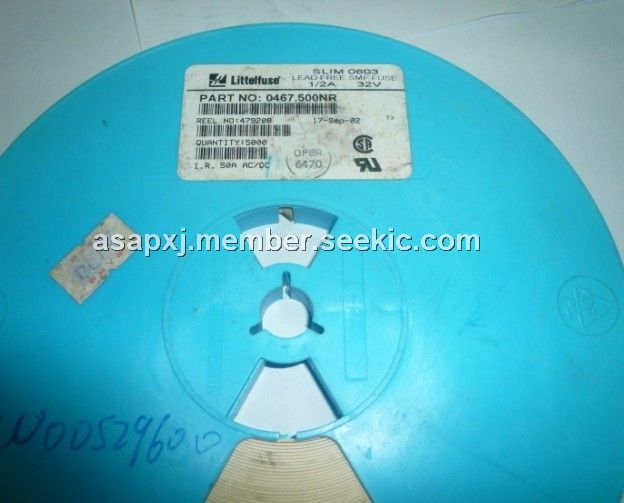

 0467.500NR |
Littelfuse |
Fuses 32V.5A VFA Slimline |
Data Sheet |
|
|
||||||||||||
|
0467.500NRHF |
Littelfuse |
Fuses 32V .500A V/FA HALIDE FREE |
Data Sheet |
|
|
||||||||||||
