Product Summary

The Z0607MA is a 0.8A TRIAC. It is suitable for low power AC switching applications, such as fan speed, small light controllers. Thanks to low gate triggering current, the Z0607MA can be directly driven by microcontrollers.

Parametrics

Z0607MA absolute maximum ratings: (1)RMS on-state current (full sine wave): 0.8 A at Tl = 50℃; (2)Non repetitive surge peak on-state current (full cycle, Tj initial = 25℃): 9 A at F = 50 Hz, t = 20 ms, 9.5 A at F = 60 Hz, t = 16.7 ms; (3)I2t Value for fusing: 0.45 A2s at tp = 10 ms; (4)Critical rate of rise of on-state current IG = 2 x IGT , tr ≤ 100 ns: 20 A/μs at F = 120 Hz Tj = 110℃; (5)Peak gate current: 1 A at tp = 20 μs Tj = 110℃; (6)Average gate power dissipation: 0.1 W at Tj = 110℃; (7)Storage junction temperature range: - 40 to + 150℃; (8)Operating junction temperature range: - 40 to + 110℃.

Features

Z0607MA features: (1)IT(RMS): 0.8 A; (2)VDRM/VRRM: 600 V; (3)IGT (Q1): 5 mA.

Diagrams

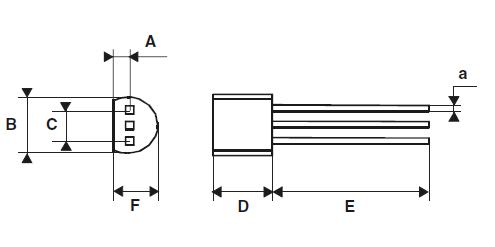

Z0607MA Package Mechanical Data
