Product Summary

The TQM7M4006 is an advanced, quad-band, ultra-compact, 3V power amplifier module designed for mobile handset applications. The TQM7M4006 sets new standards in performance and size by employing the latest technologies in HBT power amplifier design, laminate design and CuFlip assembly technology. The applications of the TQM7M4006 are GSM handsets, GSM wireless cards and data links.

Parametrics

TQM7M4006 absolute maximum ratings: (1)Supply Voltage:-0.5 to 5.5VDC; (2)DC Supply Current:2.5A; (3)Power Control Voltage:-0.5V to VBAT; (4)Duty Cycle at Max. Power:50%; (5)Output Load:10:1; (6)Case Temperature, Operating:-20℃ to +100℃; (7)Storage Temperature:-55℃ to +150℃; (8)Input Power:12dBm.

Features

TQM7M4006 features: (1)Very compact size:5×5×1.1 mm3; (2)Positive supply voltage:3.0 to 4.5 V; (3)High efficiency:typical GSM850 52%, GSM900 57%, DCS 51%, PCS 51%; (4)CMOS internal closed-loop power control; (5)>55 dB dynamic control range; (6)GPRS class 12 compatible; (7)High-reliability InGaP technology; (8)Ruggedness 10:1; (9)50Ω input and output impedances; (10)Few external components.

Diagrams

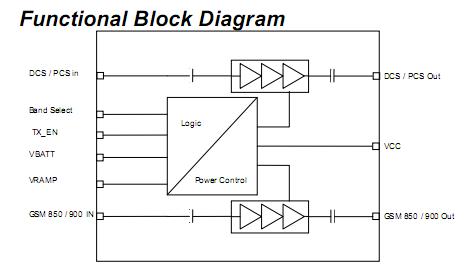

TQM7M4006 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TQM7M4006
TQM7M4006
TriQuint Semiconductor
RF Amplifier QuadBand GMSK GSM PAM
Data Sheet
Negotiable
