Product Summary
The TPS76132DBVR is a 100 mA, low dropout (LDO) voltage regulator designed specifically for battery-powered applications. A proprietary BiCMOS fabrication process allows the TPS76132DBVR to provide outstanding performance in all specifications critical to battery-powered operation. The TPS76132DBVR is available in a space-saving SOT-23 (DBV) package and operates over a junction temperature range of –40℃ to 125℃.
Parametrics
TPS76132DBVR absolute maximum ratings: (1)Input voltage range, VI (see Note 1): –0.3 V to 16 V; (2)Voltage range at EN: –0.3 V to VI + 0.3 V; (3)Peak output current: internally limited; (4)Continuous total dissipation: See Dissipation Rating Table; (5)Operating junction temperature range, TJ: –40℃ to 150℃; (6)Storage temperature range, Tstg: –65℃ to 150℃; (7)ESD rating, HBM: 1.5 kV.
Features
TPS76132DBVR features: (1)100-mA Low-Dropout Regulator; (2)Fixed Output Voltage Options: 5 V, 3.8 V, 3.3 V, 3.2 V, and 3 V; (3)Dropout Typically 170 mV at 100-mA; (4)Thermal Protection; (5)Less Than 1 mA Quiescent Current in Shutdown; (6)–40℃ to 125℃ Operating Junction Temperature Range; (7)5-Pin SOT-23 (DBV) Package; (8) ESD Protection Verified to 1.5 KV Human; (9) Body Model (HBM) per MIL-STD-883C.

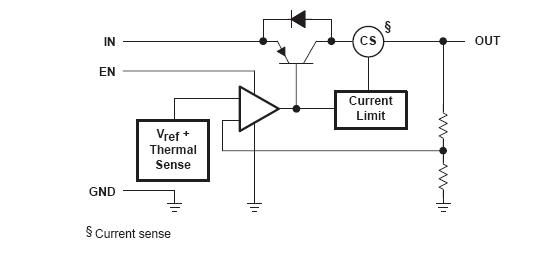

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS76132DBVR |
Texas Instruments |
Low Dropout (LDO) Regulators 100mA 3.2V LDO |
Data Sheet |
|
|
||||||||||||
|
TPS76132DBVRG4 |
Texas Instruments |
Low Dropout (LDO) Regulators Low Power 100-mA |
Data Sheet |
|
|
||||||||||||
