TMS320VC5501ZZZ300

fixed-point digital signal processor, 201-BGA, -0.3 V to 4.0 V, TMS320VC5501ZZZ300

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.76~4.76 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.76~4.76

PartNumber:: TMS320VC5501ZZZ300

Brand:: Texas Instruments - TI | Pack: BGA | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-16

From Other Seller

Part Number:TMS320VC5501ZZZ300
US $4.76 - 4.76
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

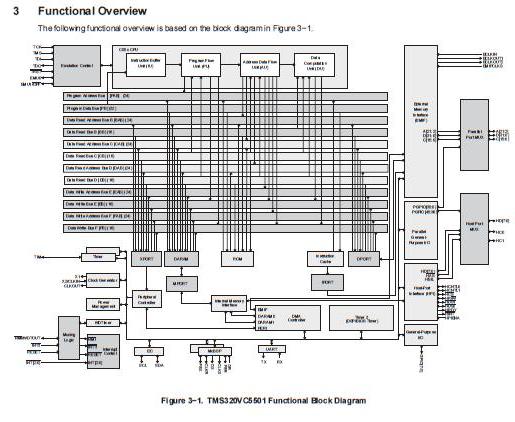

The TMS320VC5501ZZZ300 fixed-point digital signal processor (DSP) is based on the TMS320C55x DSP generation CPU processor core. The TMS320VC5501ZZZ300 DSP architecture achieves high performance and low power through increased parallelism and total focus on reduction in power dissipation. The CPU supports an internal bus structure that is composed of one program bus, three data read buses, two data write buses, and additional buses dedicated to peripheral and DMA activity. These buses of the TMS320VC5501ZZZ300 provide the ability to perform up to three data reads and two data writes in a single cycle. In parallel, the DMA controller can perform data transfers independent of the CPU activity.

Parametrics

TMS320VC5501ZZZ300 absolute maximum ratings: (1)Supply voltage I/O range, DVDD: -0.3 V to 4.0 V; (2)Supply voltage core range, CVDD: -0.3 V to 2.0 V; (3)Input voltage range, VI: -0.3 V to 4.5 V; (4)Output voltage range, Vo: -0.3 V to 4.5 V; (5)Operating case temperature range, TC: -40℃ to 85℃; (6)Storage temperature range Tstg: -55℃ to 150℃.

Features

TMS320VC5501ZZZ300 features: (1)High-Performance, Low-Power, Fixed-Point TMS320C55x Digital Signal Processor (DSP); (2)Instruction Cache (16K Bytes); (3)16K × 16-Bit On-Chip RAM That is Composed of Four Blocks of 4K × 16-Bit Dual-Access RAM (DARAM) (32K Bytes); (4)16K × 16-Bit One-Wait-State On-Chip ROM (32K Bytes); (5)8M × 16-Bit Maximum Addressable External Memory Space; (6)32-Bit External Parallel Bus Memory Supporting External Memory Interface (EMIF) With General-Purpose Input/Output (GPIO) Capabilities.
