Product Summary
The TLV2771CDR CMOS operational amplifier combines high slew rate and bandwidth, rail-to-rail output swing, high output drive, and excellent dc precision. The TLV2771CDR provides 10.5 V/μs of slew rate and 5.1 MHz of bandwidth while only consuming 1 mA of supply current per channel. This ac performance is much higher than current competitive CMOS amplifiers. The rail-to-rail output swing and high output drive make TLV2771CDR a good choice for driving the analog input or reference of analog-to-digital converters. The TLV2771CDR also has low distortion while driving a 600-Ω load for use in telecom systems.
Parametrics
TLV2771CDR absolute maximum ratings: (1)Supply voltage, VDD: 7 V; (2)Differential input voltage, VID: ±VDD; (3)Input voltage range, VI: -0.3 V to VDD; (4)Input current, II (any input): ±4 mA; (5)Output current, IO: ±50 mA; (6)Total current into VDD+: ±50 mA; (7)Total current out of GND: ±50 mA; (8)Duration of short-circuit current (at or below) 25℃: unlimited; (9)Operating free-air temperature range, TA: C suffix: 0℃ to 70℃, I suffix: -40℃ to 125℃, Q suffix: -40℃ to 125℃, M suffix: -55℃ to 125℃; (10)Storage temperature range, Tstg: -65℃ to 150℃; (11)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
TLV2771CDR features: (1)High Slew Rate: 10.5 V/μs Typ; (2)High-Gain Bandwidth: 5.1 MHz Typ; (3)Supply Voltage Range 2.5 V to 5.5 V; (4)Rail-to-Rail Output; (5)360 μV Input Offset Voltage; (6)Low Distortion Driving 600-Ω 0.005% THD+N; (7)1 mA Supply Current (Per Channel); (8)17 nV/√Hz Input Noise Voltage; (9)2 pA Input Bias Current; (10)Characterized From TA = -55℃ to 125℃; (11)Available in MSOP and SOT-23 Packages; (12)Micropower Shutdown Mode: IDD < 1 μA.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

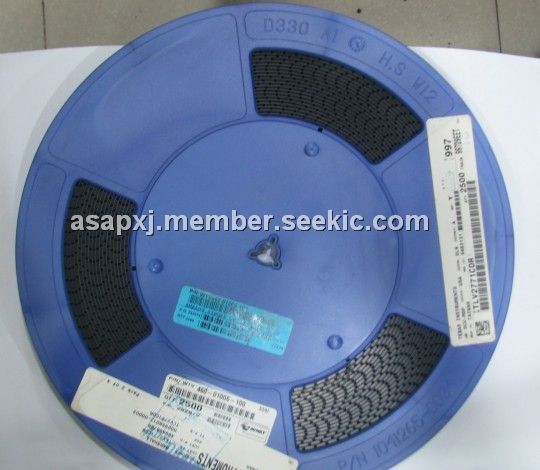

 TLV2771CDR |
Texas Instruments |
Operational Amplifiers - Op Amps Single 2.7-V Hi-Slew Rate R-To-R Output |
Data Sheet |
|
|
||||||||||||
|
TLV2771CDRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Single 2.7-V Hi-Slew Rate R-To-R Output |
Data Sheet |
|
|
||||||||||||
