TLV1570CPWR

Product Summary

The TLV1570CPWR is a 2.7 v to 5.5 v 8-channel 10-bit 1.25-msps serial analog-to-digital converter. It is a 10-bit data acquisition system that combines an 8-channel input multiplexer (MUX), a high-speed 10-bit ADC, an on-chip reference, and a high-speed serial interface. The TLV1570CPWR contains an on-chip control register allowing control of channel selection, conversion start, reference voltage levels, and power down via the serial port. The MUX is independently accessible, which allows the user to insert a signal conditioning circuit such as an anti-aliasing filter or an amplifier, if required, between the MUX and the ADC. The applications of the TLV1570CPWR include: Mass Storage and Hard Disk Drive, Automotive, Digital Servos, Process Control, General Purpose DSP, Image Sensor Processing.

Parametrics

TLV1570CPWR absolute maximum ratings: (1)Supply voltage range, AGND to AVDD, DGND to DVDD: –0.3 V to 6.5 V; (2)Analog input voltage range: –0.3 V to AVDD+0.3 V; (3)Reference input voltage: AVDD+0.3 V; (4)Digital input voltage range: –0.3 V to DVDD+0.3 V; (5)Operating virtual junction temperature range, TJ: –40℃ to 150℃; (6)Operating free-air temperature range, TA: 0℃ to 70℃; (7)Storage temperature range, Tstg: –65℃ to 150℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TLV1570CPWR features: (1)Fast Throughput Rate: 1.25 MSPS at 5 V, 625 KSPS at 3 V; (2)Wide Analog Channel Input: 0 V to AVDD; (3)Eight Analog Input Channels; (4)Channel Auto-Scan; (5)Differential Nonlinearity Error: < ±1 LSB; (6)Integral Nonlinearity Error: < ±1 LSB; (7)Signal-to-Noise and Distortion Ratio: 57 dB; (8)Single 2.7-V to 5.5-V Supply Operation; (9)Very Low Power: 40 mW at 5.5 V, 8 mW at 2.7 V; (10)Auto-Power Down: 300 μA Max; (11)Software Power Down: 10 μA Max; (12)Glueless Serial Interface to TMS320 DSPs and (Q)SPI Compatible Microcontrollers; (13)Programmable Internal Reference Voltage: 3.8-V Reference for 5-V Operation, 2.3-V Reference for 3-V Operation.

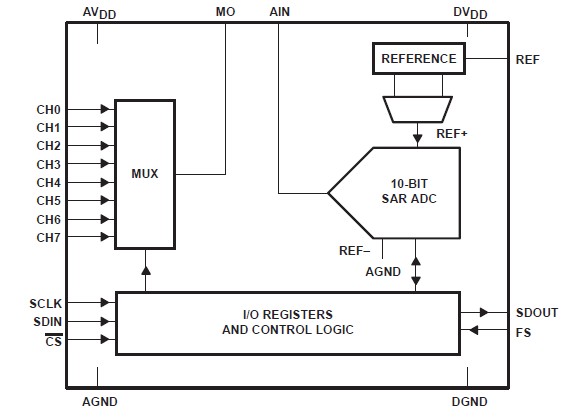

Diagrams
