Product Summary

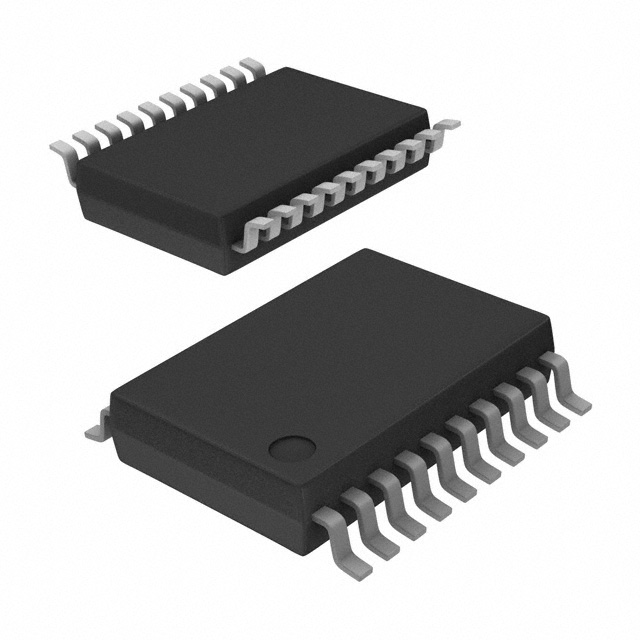

The TLV1548CDB is a CMOS 10-bit switched-capacitor successive-approximation (SAR) analog-to-digital (A/D) converter. Each TLV1548IDBR has a chip select (CS), input-output clock (I/O CLK), data input (DATA IN) and serial data output (DATA OUT) that provides a direct 4-wire synchronous serial peripheral interface (SPIE, QSPIE) port of a host microprocessor. The TLV1548CDB is designed to operate with a wide range of supply voltages with very low power consumption. The power saving feature is further enhanced with a software-programmed power-down mode and conversion rate.
Parametrics
TLV1548CDB absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 6.5 V; (2)Input voltage range, VI (any input): –0.3 V to VCC + 0.3 V; (3)Output voltage range, VO: –0.3 V to VCC + 0.3 V; (4)Positive reference voltage, Vref+: VCC + 0.1 V; (5)Negative reference voltage, Vref– : –0.1 V; (6)Peak input current, II (any input): ±20 mA; (7)Peak total input current (all inputs): –30 mA; (8)Operating free-air temperature range, TA: TLV1544C, TLV1548C: 0℃ to 70℃; (9)Storage temperature range, Tstg: –65℃ to 150℃; (10)Lead temperature 1,6 mm (1/16 inch) from the case for 10 seconds: 260℃.
Features
TLV1548CDB features: (1)Conversion Time 3 10 ms; (2)10-Bit-Resolution ADC; (3)Programmable Power-Down Mode: 1 μA; (4)Wide Range Single-Supply Operation of 2.7 V dc to 5.5 V dc; (5)Analog Input Range of 0 V to VCC; (6)Built-in Analog Multiplexer with 8 Analog Input Channels; (7)TMS320 DSP and Microprocessor SPI and QSPI Compatible Serial Interfaces; (8)End-of-Conversion (EOC) Flag; (9)Inherent Sample-and-Hold Function; (10)Built-In Self-Test Modes; (11)Programmable Power and Conversion Rate; (12)Asynchronous Start of Conversion for Extended Sampling; (13)Hardware I/O Clock Phase Adjust Input.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLV1548CDB |
Texas Instruments |
ADC (A/D Converters) 10bit 85kSPS ADC |
Data Sheet |
|
|
||||||||||||
|
TLV1548CDBG4 |
Texas Instruments |
ADC (A/D Converters) 10bit 85kSPS ADC |
Data Sheet |
|
|
||||||||||||
|
TLV1548CDBR |
Texas Instruments |
ADC (A/D Converters) 10-Bit 85 kSPS Serial Out |
Data Sheet |
|
|
||||||||||||
|
TLV1548CDBRG4 |
Texas Instruments |
ADC (A/D Converters) 10-Bit 85 kSPS Serial Out |
Data Sheet |
|
|
||||||||||||
