Product Summary

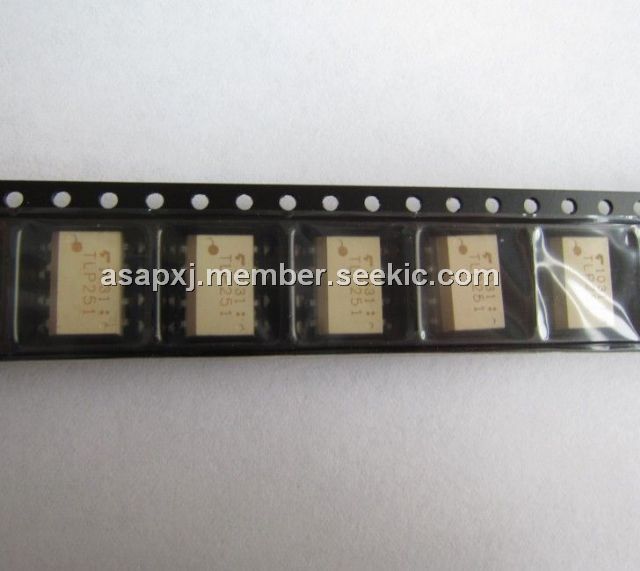

The TLP251(TP1,F) is a Photocoupler. It consists of a GaAlAs light emitting diode and a integrated photodetector. This unit is 8-lead DIP package. The TLP251(TP1,F) is suitable for gate driving circuit of IGBT or power MOS FET. It is capable of “direct” gate drive of lower power IGBTs. The applications of the TLP251(TP1,F) are Inverter For Air Conditioner, Induction Heating, Transistor Inverter, Power MOS FET Gate Drive, IGBT Gate Drive.
Parametrics
TLP251(TP1,F) absolute maximum ratings: (1)Forward current:20 mA; (2)Forward current derating:0.36mA /℃; (3)Peak transient forward current:1 A; (4)Reverse voltage:5 V; (5)Junction temperature:125℃.
Features
TLP251(TP1,F) features: (1)Input threshold current: IF=5mA(max.); (2)Supply current (ICC): 11mA(max.); (3)Supply voltage (VCC): 10 to 35V; (4)Output current (IO): ±0.4A(max.); (5)Switching time (tpLH / tpHL): 1μs(max.); (6)Isolation voltage: 2500Vrms(min.) ; (7)UL recognized: UL1577, file no.E67349.

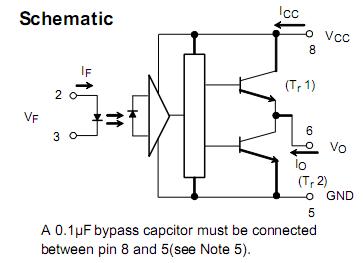

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP251(TP1,F) |
Toshiba |
Logic Output Optocouplers IGBT DRIVER |
Data Sheet |
|
|
||||||||||||
