Product Summary

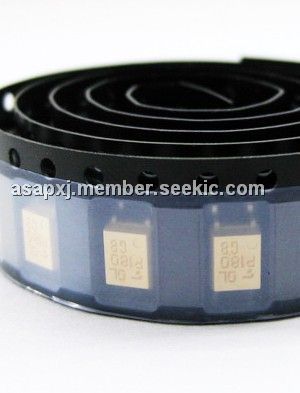

The TLP180GB is a small outline coupler. It is suitable for surface mount assembly. The TLP180GB consists of a photo transistor, optically coupled to a gallium arsenide infrared emitting diode connected inverse parallel, and can operate directly by AC input current. The applications of the TLP180GB inlucde programmable controllers, AC/DC-input module and telecommunication.
Parametrics
TLP180GB absolute maximum ratings: (1)LED, forward current, IF(RMS): ±50mA; forward current detating (Ta≥53℃), △IF/℃: -0.7mA/℃; pulse forward current, IFP: ±1A; junction temperature, Tj: 125℃; (2)detector, collector-emitter voltage, VCEO: 80V; emitter-collector voltage, VECO: 80V; collector current, IC: 50mA; power dissipation, PC: 150mW; power dissipation derating (Ta≥25℃), △pc/℃: -1.5mW/℃; junction temperature, Tj: 125℃; (3)storage temperature range, Tstg: -55 to 125℃; (4)operating temperature range, Topr: -55 to 100℃; (5)lead soldering temperature (10s), Tsol: 260℃; (6)total package power dissipation, PT: 200mW; (7)total package power dissipation derating (Ta≥25℃), △PT/℃: -2.0mW/℃; (8)isolation voltage (AC, 1MIN, RH≤60%), BVS: 3750Vrms.
Features
TLP180GB features: (1)collector-emitter voltage: 80V min; (2)current transfer ratio: 50% min; rank GB: 100% min; (3)isolation voltage: 3750Vrms min; (4)UL recognized: UL1557, File No. E67349.
