Product Summary

Parametrics

Series: -
Number of Bits: 8
Voltage Supply Source: Single Supply
Mounting Type: Surface Mount
Packaging: Tape & Reel (TR)Alternate Packaging
Manufacturer: Texas Instruments
Number of Converters: 2
Data Interface: Parallel
Operating Temperature: 0°C ~ 70°C

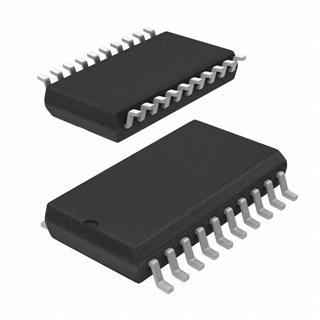

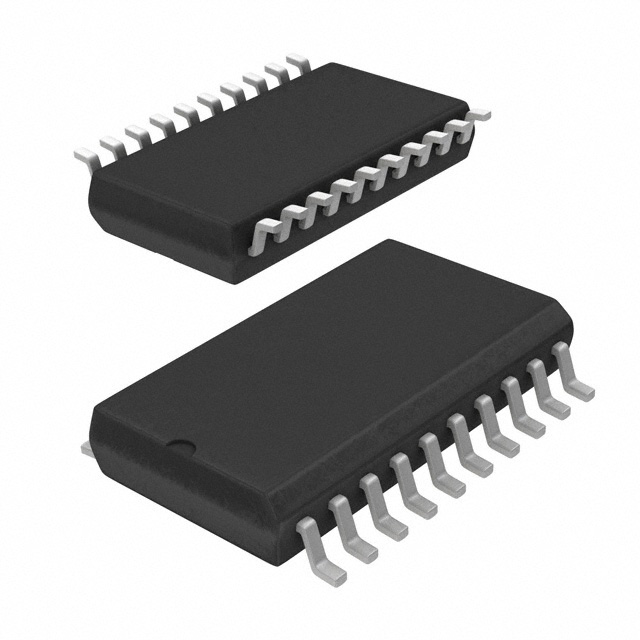

Package / Case: 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package: 20-SOIC
Settling Time: 100ns
Power Dissipation (Max): 20mW
Number of Outputs and Type: 2 Current, Bipolar
Sampling Rate (Per Second): 10M

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TLC7628CDWR
TLC7628CDWR

Texas Instruments

DAC (D/A Converters) 8-Bit 0.1 us Dual MDAC Parallel Input

Data Sheet

0-1485: $1.46
1485-2000: $1.40
2000-5000: $1.35
TLC7628CDWRG4
TLC7628CDWRG4

Texas Instruments

DAC (D/A Converters) 8-Bit 0.1 us Dual MDAC Parallel Input

Data Sheet

0-1485: $1.46
1485-2000: $1.40
2000-5000: $1.35
